Product Description
SINOTRUK HOWO 8×4 type 50T capacity heavy duty rotator tow truck road recovery truck for sale
GVW31000kg Driving Type 8×4 | |||||
Model | CLW5313TQZZ | ||||
Cab | SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner | ||||
Engine(Hp) | 380 | ||||
Power(Kw) | 280 | ||||
Wheelbase | 1800+4600+1350 | ||||
Front/Rear Suspension | 1500/2210 | ||||
Steering | Power steering | ||||
Approach/departure angle | 14/18 | ||||
Wheels & tire | 12.0R20 | ||||
Tire number | 12+1 | ||||
Loading capacity(kg) |
| ||||
Plate dimension(mm) | no | ||||
RHD or LHD | optional | ||||
Overall Dimensions(mm) | 11460×2500×3500 | ||||
Curb weight (Kg) | 28700 | ||||
Engine | Model | WD615 | |||
Horsepower | 380 | ||||
Maximum output Kw | 280 | ||||
Maximum torque N.m | 1460 | ||||
Type | 6 cylinders, in-line, diesel engine | ||||
Displacement | 9.726L | ||||
SINOTRUK brand, Euro 2 | |||||
Driving passenger | 2,3 | ||||
Transmission | HW19710,10 forwards,2 reverse | ||||
Front Axle | HF9 | ||||
Rear Axle | HC16 | ||||
Brake System | air brake ,exhaust brake | ||||
Color and LOGO | customized | ||||
Electric system | 24V | ||||
Major parameter | Winch capacity | 15000kg | Lift | three section | |
Crane | 360° | Steel wire rope | 45m | ||

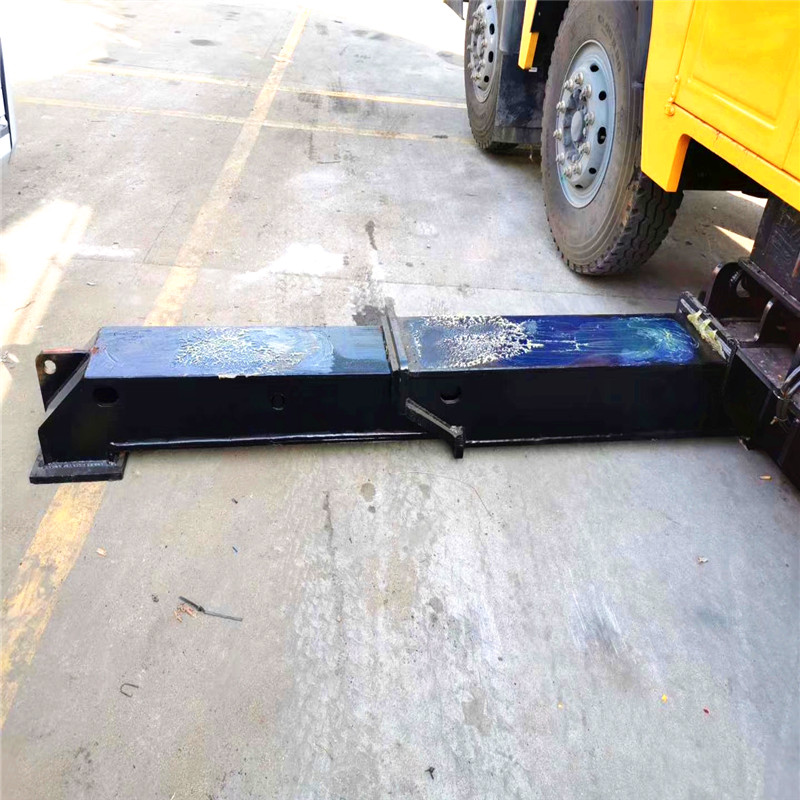

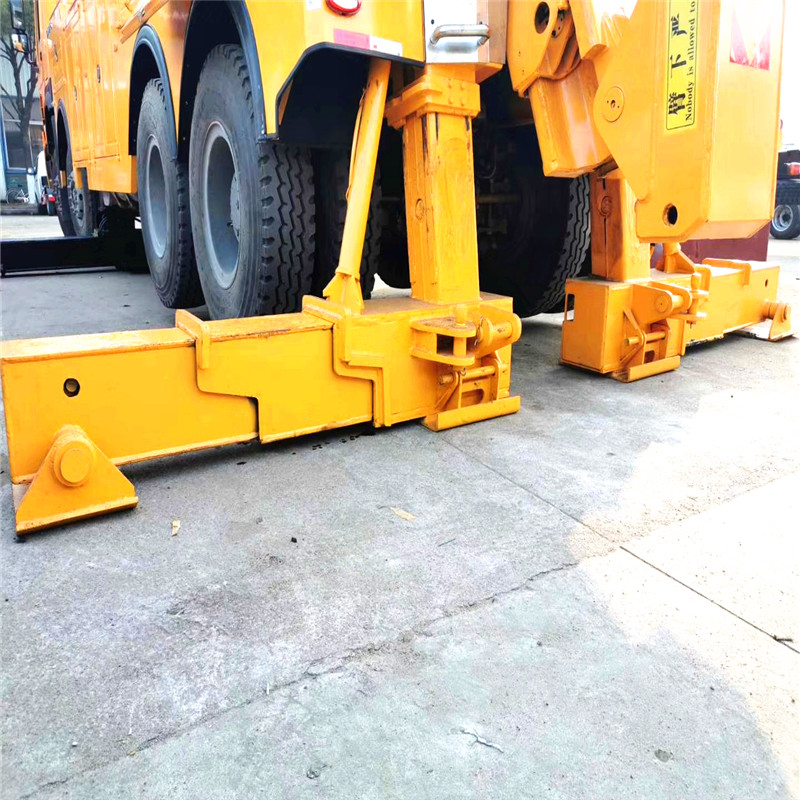

Standard configuration | 2 unit of 15 ton winch, 1 unit of steel wire rope, with four sets of steel forks, a set of forks cover, a set of steel ear lifting forks, a set of tires. A long row of engineering lights. A set of auxiliary lights, a set of auxiliary air pipe assemblies 1 unit of spare tire, 1 unit of jack, famous hydraulic system, crane and others | ||||
Delivery date | Within 20 days after receipt advance | ||||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||

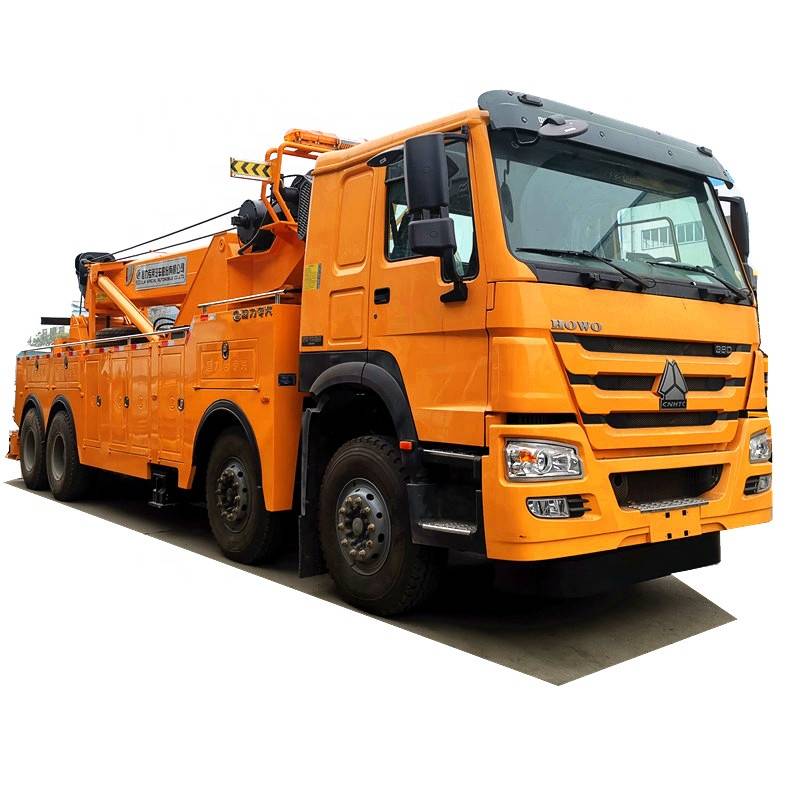

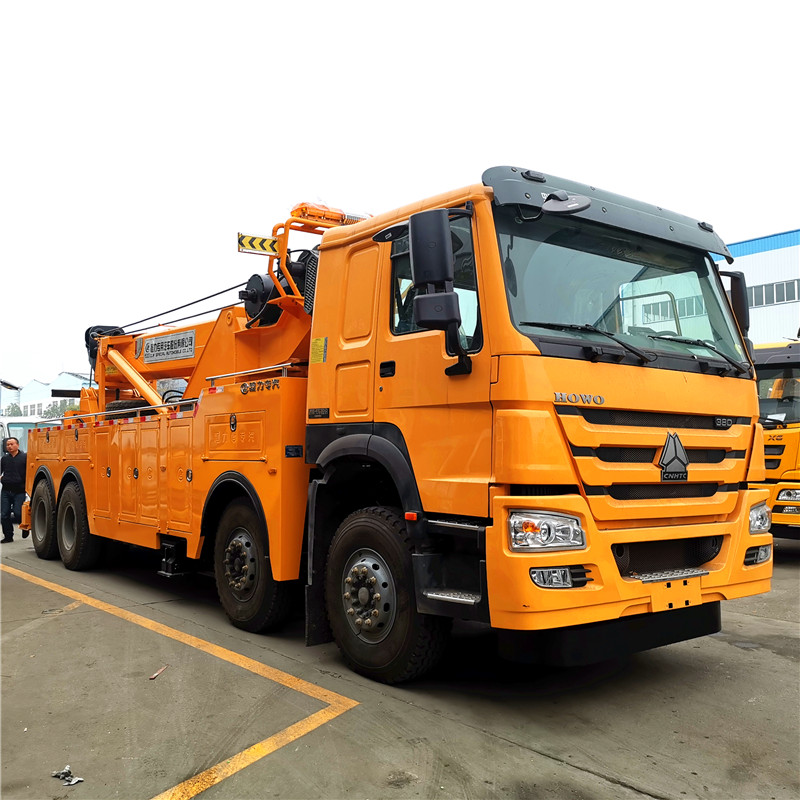

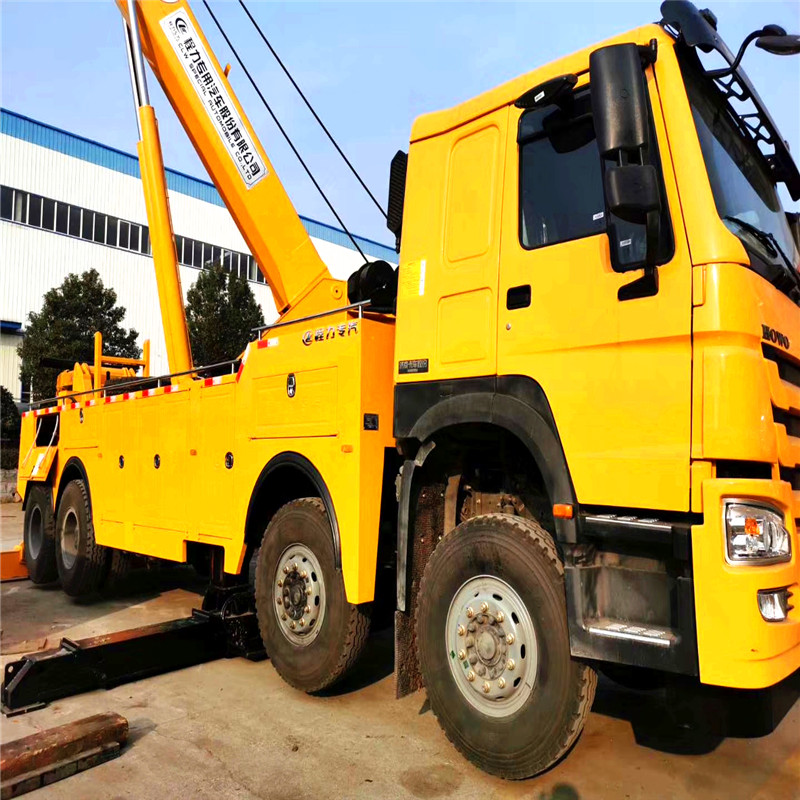

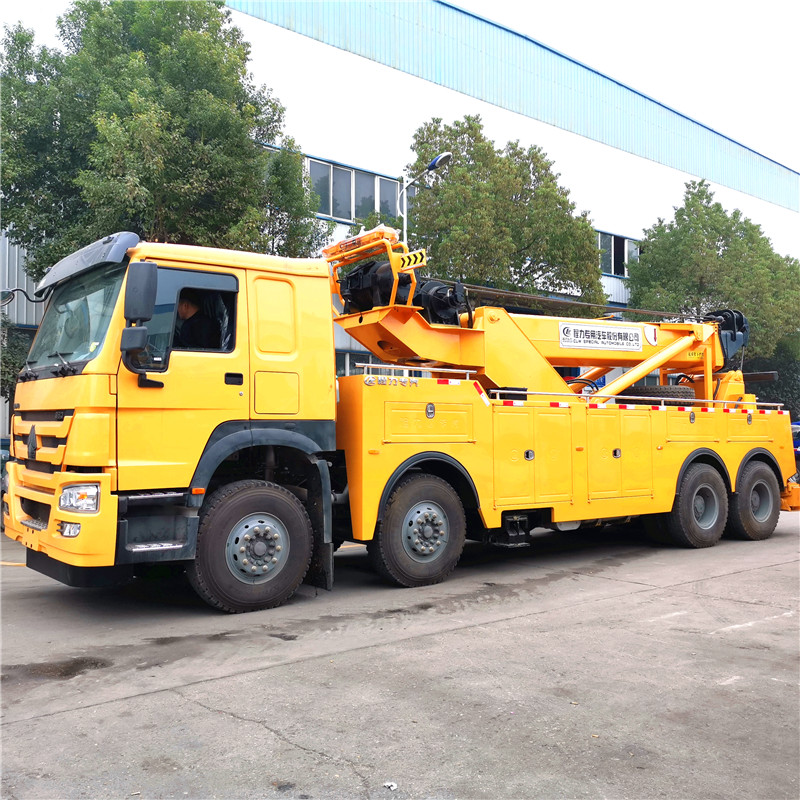

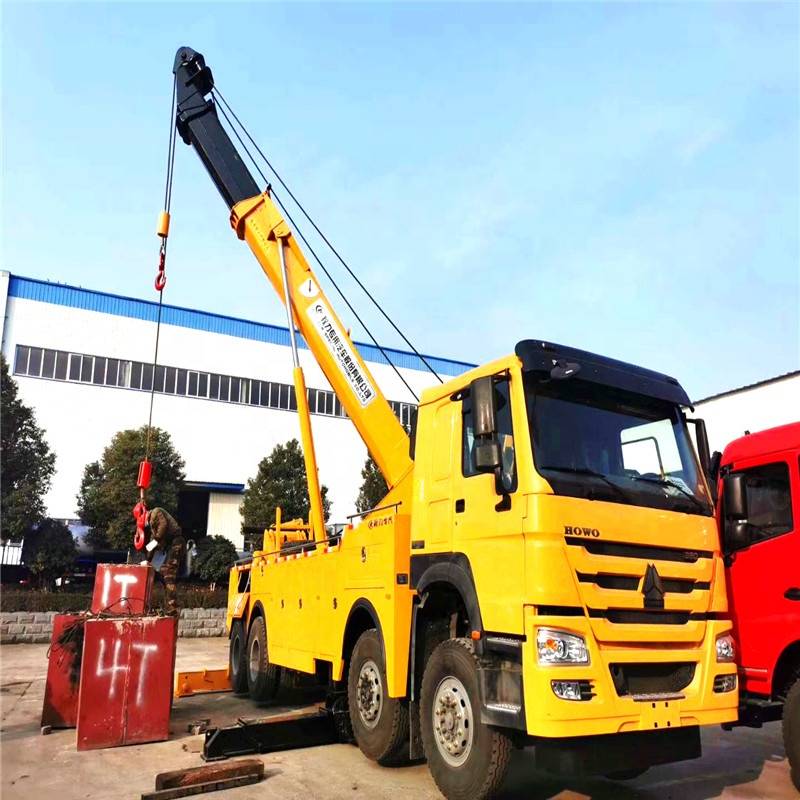

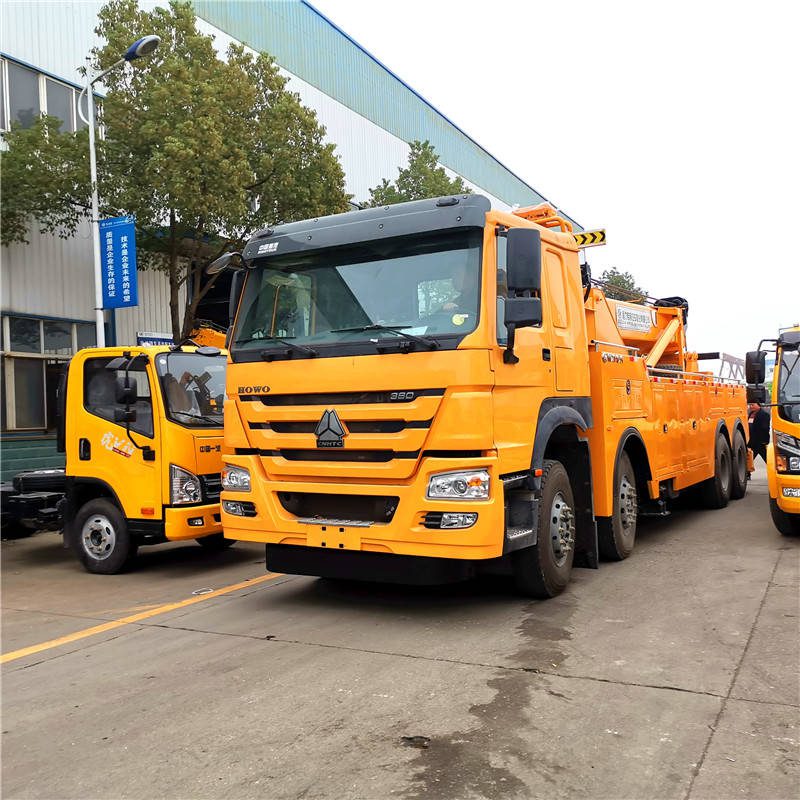

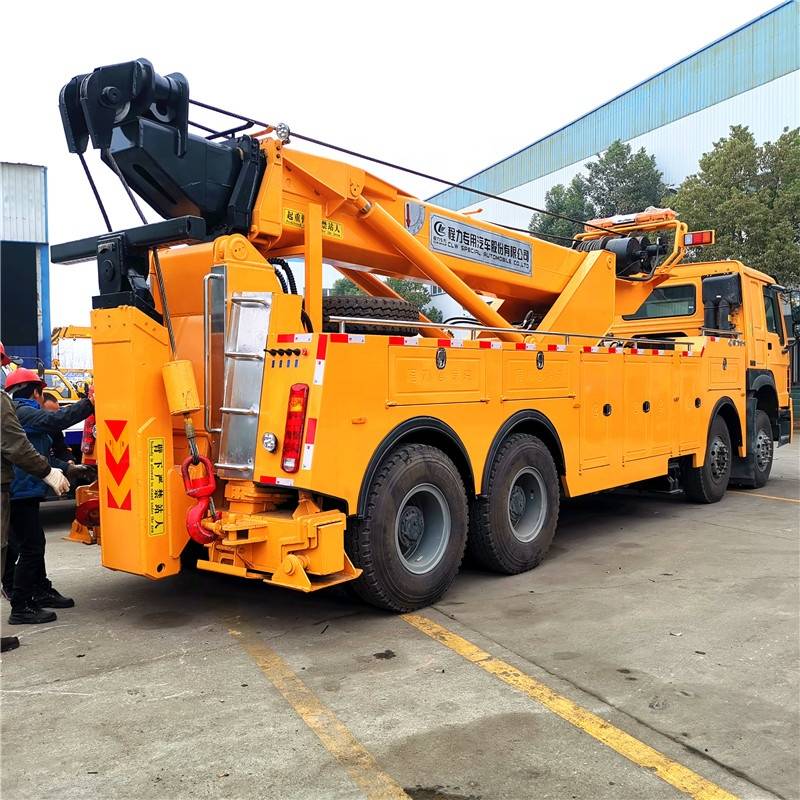

Rotation crane towing truck photos
Packaging & Shipping
- Packaging Details
1. Packaging: nude or waxing or CONTAINER or RO-RO or Frame
2. Shipping: In the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;We can supply different and professional shipping solution for your customized product to one-stop service.
- Port
- SHANGHAI , WUHAN , LIANYUANGANG , TIANJIN
- Lead Time :
-
Quantity(Pieces) 1 – 1 >1 Est. Time(days) 35 To be negotiated
Our Services
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
