Good performance Howo new 6×4 8cbm concrete mixer truck for sale
More Efficient:The height of the blade is higher than the other of the same kind, and the feeding speed is greater than 3.0m³ /min (national standard 2.7m³ /min). The discharging speed is more than 2m³ /min (national standard 0.65m³ /min), and the working efficiency is 50% higher than that of the same kind.
Low residual rate:The unique non equal angle logarithmic spiral blade is better than the logarithmic spiral blade of similar mixer.The mixing is uniformity and the material is clean.
The mixing is more uniform: the unique blade opening design makes the concrete flow direction more uniform, the mixing action is more fluent, and the mortar is more delicate.
Longer service life: mixing cylinder and mixing blade made of high strength fine grain alloy steel, small deformation, high wear resistance, effectively guarantee loading capacity and service life.
The water system of aluminum plastic tube and gas circuit protection box is used for easy operation, safety and reliability. The aluminum plastic pipe has the advantages of pressure resistance, heat resistance, UV resistance, long service life and so on. The gas path protection box adopts stainless steel ball valve and double protection device with air passage.
Compact structure, easy to rust, easy to operate, safe and reliable; reliable high quality aluminum plastic pipe waterway: heat resistance, UV resistance, pressure resistance, reliable sealing.
|
Engine | ||
|
モデル | HOWO | |
|
Type |
Mechanical, four-stroke, water-cooled, in-line, four valve, direct-injection | |
|
Max. power |
250kw(340hp)/1900rpm | |
|
Max. torque |
1660N.m/1100-1400r/min. | |
|
Number of cylinders |
6 | |
|
Bore x stroke |
118 x 150mm | |
|
Displacement |
9L | |
|
Main Technical Specification | ||
|
Kerb mass |
12000kg | |
|
Pay-loading capacity |
13000kg | |
|
G.V.W. |
25000kg | |
|
Max. travelling speed |
90km/h | |
|
Min. turning radius |
8m | |
|
Gradeability |
30% | |
|
Approach angle |
30° | |
|
Departure angle |
24° | |
|
Ground clearance |
255mm | |
|
Fuel tank capacity |
320L (galvanized steel) | |
|
Dimensions | ||
|
Overall size (L x W x H) |
9250 x 2500 x 3980mm | |
|
Wheelbase |
3600 + 1350mm | |
|
Tread (F/R) |
2065/1860/1860mm | |
|
Transmission System | ||
|
Mechanical type with servo and synchronizer, 9 forward & 1 reverse | ||
|
Ratio | ||
|
Forward |
15.49, 12.07, 8.35, 5.67, 4.07, 2.96, 2.05, 1.39, 1,00 | |
|
Reverse |
14.19 | |
|
Mixer Drum | ||
|
Geometric volume of mixing drum |
15.7m³ | |
|
Effective capacity |
8m³ | |
|
Rotation speed |
0-15rpm | |
|
Feeding speed |
≥ 2.7³/min. | |
|
Discharging speed |
≥ 1.2³/min. | |
|
Residue rate |
≤ 1.0% | |
|
Loading rate |
60.0% | |
|
Inclination of mixing drum |
13.5° | |
|
Materials for mixing drum |
16MnCu | |
|
Model / brand /origin of pump |
A4VTG90 / Rexroth / Germany | |
|
Model / brand /origin of reducer |
P4300 / zd / Germany | |
|
Axle and Tyre | ||
|
Front axle |
Stub axle with double T-cross section | |
|
Rear axle |
Double reduction with hub reduction and final drive | |
|
Ratio |
5.26 | |
|
Tyre size |
12R22.5 | |
|
Clutch And Brake | ||
|
Single-plate dry coil-spring clutch, hydraulically operated with air assistance | ||
|
Service brake |
Full air brake, dual circuit | |
|
Parking brake |
Spring actuator at rear wheels | |
|
Auxiliary brake |
Exhaust brake | |
|
Suspension | ||
|
Front suspension |
Tapered leaf spring 09 semi-elliptic leaf spring | |
|
Rear suspension |
Tapered leaf spring 12 semi-elliptic leaf spring | |
|
Steering System | ||
|
Driving position |
Left hand drive only | |
|
Type |
Re-circulation ball with integral power assisted by oil | |
|
Cab | ||
|
SINOWAY F14 cab with A/C | ||

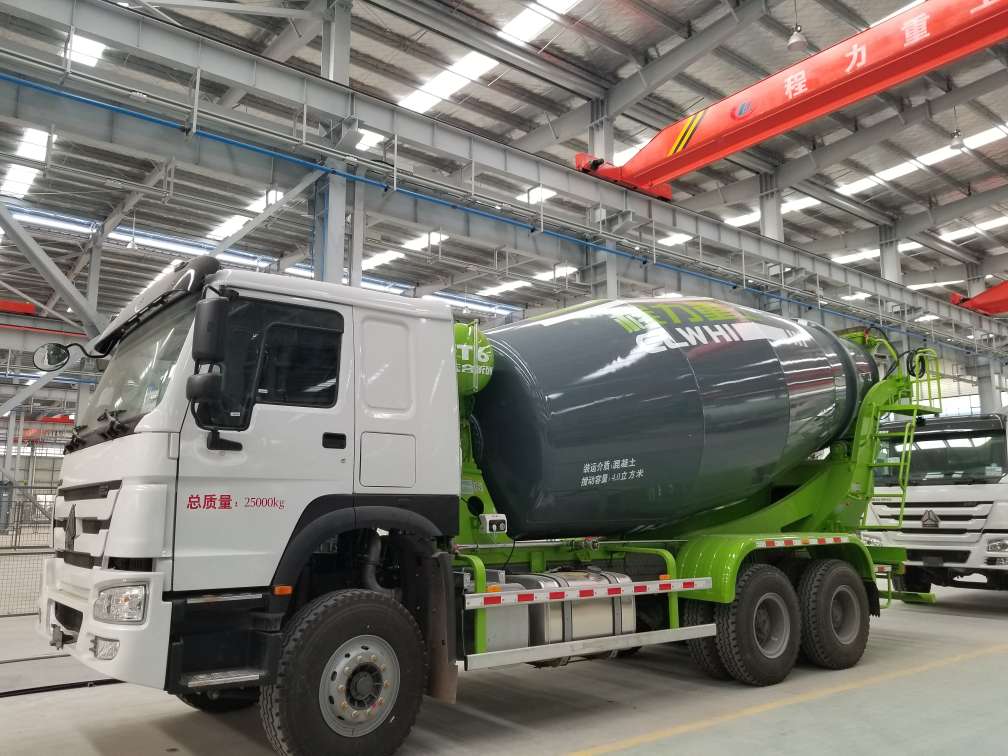

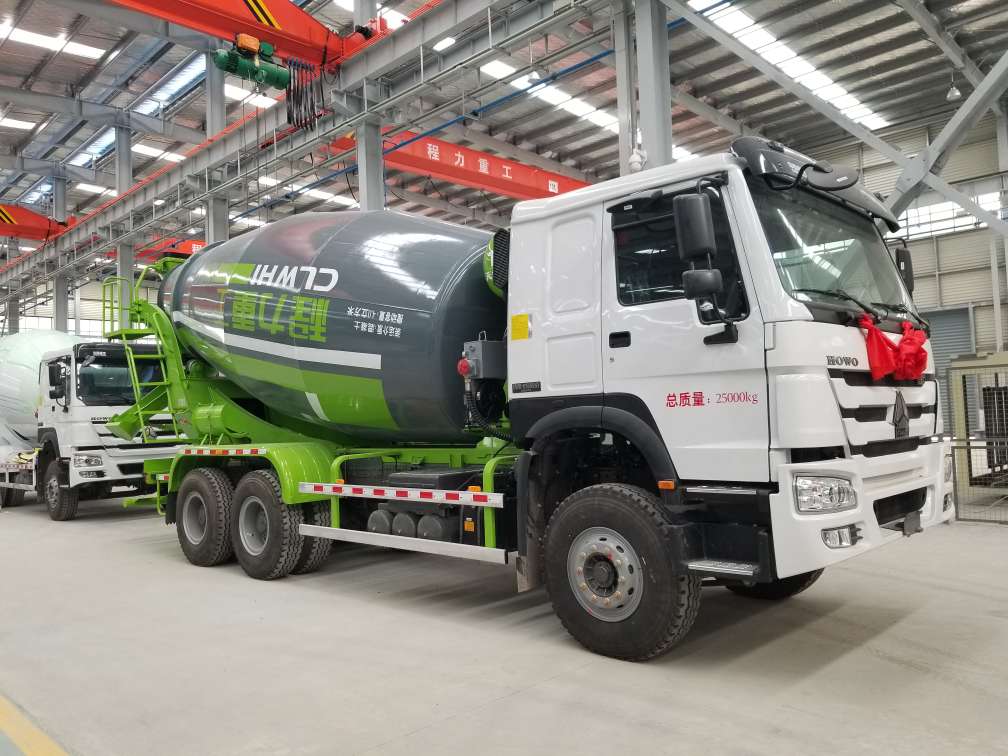

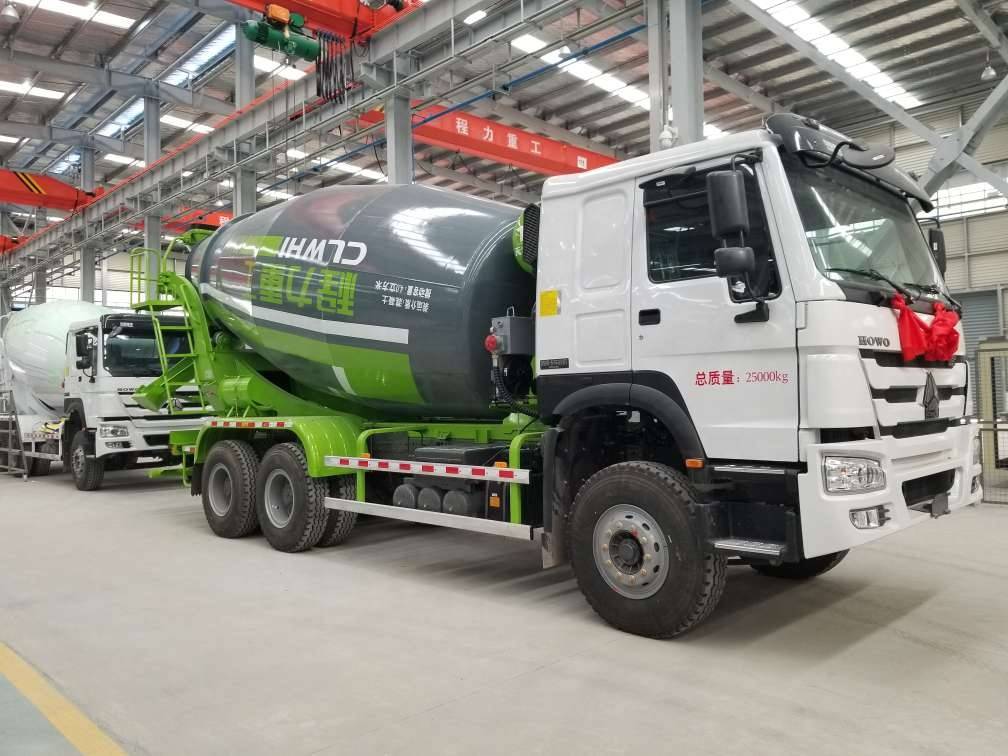

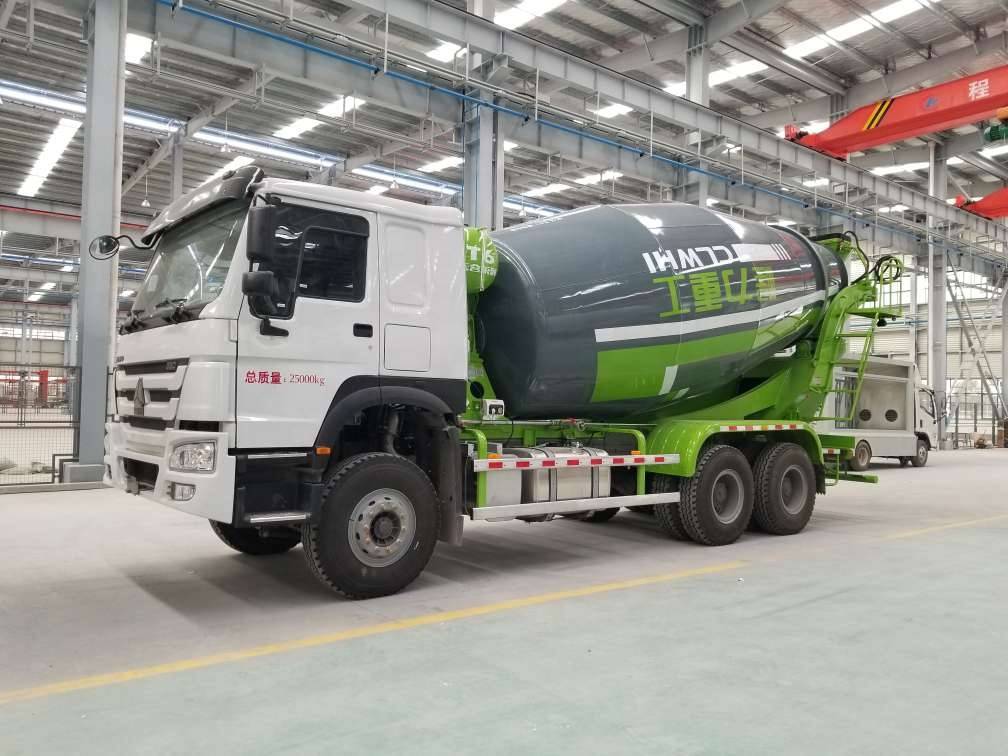

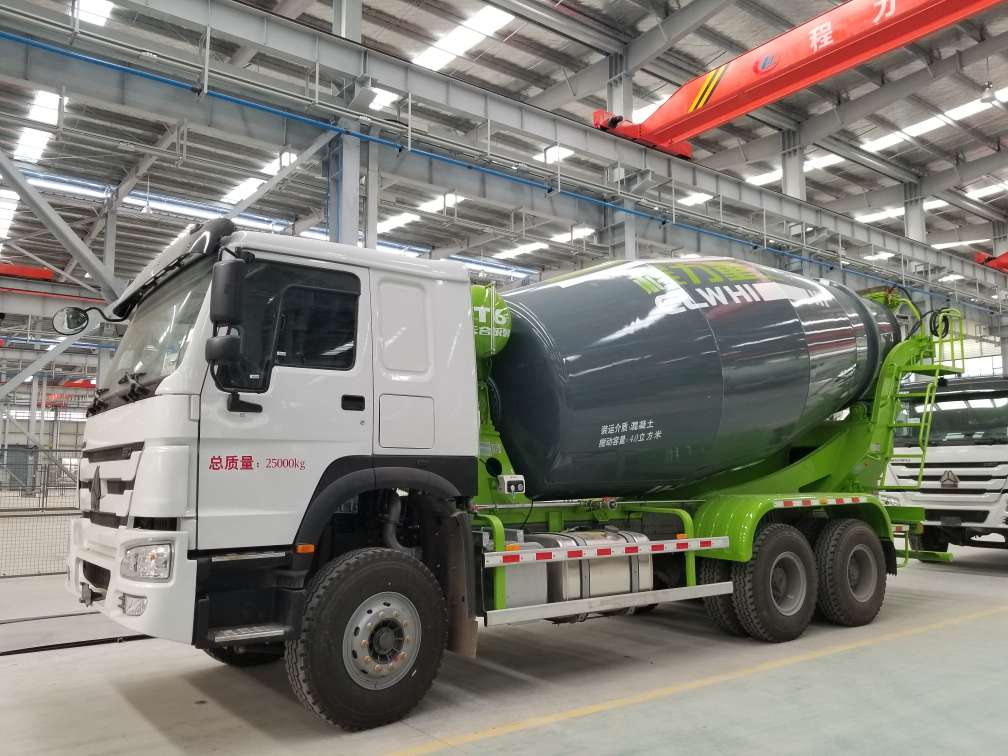

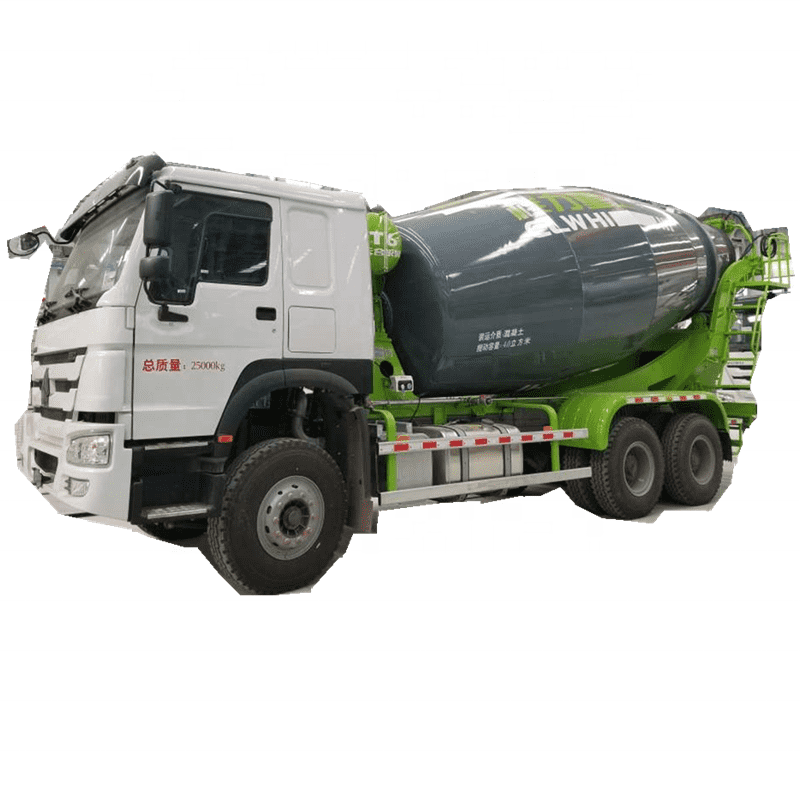

Product photos:
Packaging & Shipping
- Packaging Details
1. Packaging: nudo or waxing or CONTAINER or RO-RO or Frame
2. Shipping: In the container or Ro-Ro ship or bulk ship according to the customer' order or requirement;We can supply different and professional shipping solution for your customized product to one-stop service.
- Port
- SHANGHAI , WUHAN , LIANYUANGANG , TIANJIN
- Lead Time :
Quantity(Pieces) 1 – 1 >1 Est. Time(days) 35 To be negotiated
Our Services
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
Company Information
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company.Chengli registered trademark: "Cheng Liwei" brand, the national product code: "CLW", is the only Chinese first won the "China well-known trademark" special purpose vehicle manufacturing enterprises.
CHENGLI SPECIAL PURPOSE VEHICLE CO., LTD. Technical force is rich, detection means complete, with large equipment 750 units (sets) and 16 final assembly production line.Product quality is stable, flexible mode of operation, the company is now fully passed ISO9001-2008 international quality system certification, product all through 3C international compulsory product certification, and export products through the various authentication."Cheng Liwei" national announcements list on the product has more than 680 varieties.
