ChengLi produced SINOTRUK HOWO 6×4 8 cubic meters truck mounted concrete mixer
Concrete mixer truck is widely used to transport and mix concrete up to the construction site, such as skyscraper construction, bridge construction,high way construction and so on. Due to different size of the drum, the concrete mixer truck can be divided into different models from 2 cbm to 16cbm with different special chassis,like dongfeng, foton, dayun,jiefang and sinotruck.
Main Technical Parameter | |||||
Product Name | Cement Mixer Truck | Overall Dimension(mm) | 9300×2500×3940 | ||
Gross Weight(Kg) | 25000 | Curb Weight(Kg) | 10945 | ||
Axle No. | 3 | Axle Load(Kg) | 7000/18000(parallel installed) | ||
Wheelbase(mm) | 3625+1350 | Max Speed(Km/h) | 78 | ||
Chassis Technical Parameter | |||||
Chassis Model | ZZ1257N3647 | Chassis Brand | SINO TRUCK | ||
Overall Dimension(mm) | 7905×2496×3050 | Tyre No. | 10 tyre with 1 spare tyre | ||
F/ R Suspension(mm) | 1540/1390 | Tyre Specification | 12.00-20 | ||
Front Track(mm) | 2022 | Rear Track(mm) | 1830/1830 | ||
Drive Type | 6×4 | App/Dep Angel (°) | 20/32 | ||
Cab Allowed Person | 2 | Clutch | Single-dry diaphragm spring | ||
Axle | 16T Double rear axle | Air Condition | Equipped | ||
Steering Wheel | LHD | Gear box | 10 speed forward 2 reverse | ||
Cabin | HOWO-A7 Flat Roof | Fuel Tank Volume(L) | 400 | ||
Engine | |||||
Engine Model | WD615.96E | Engine Brand | SINO TRUCK | ||
Displacement(ml) | 9726 | Power | 371hp/276kw | ||
Fuel Type | Diesel | Emission Standard | Euro III | ||
Superstructure Technical Parameters | |||||
Mixer Capacity(m3) | 10 | Material of Drum | Q345 Carbon steel | ||
Reducer | Italy PMP brand | Hydraulic pump/motor | Italy PMP brand | ||

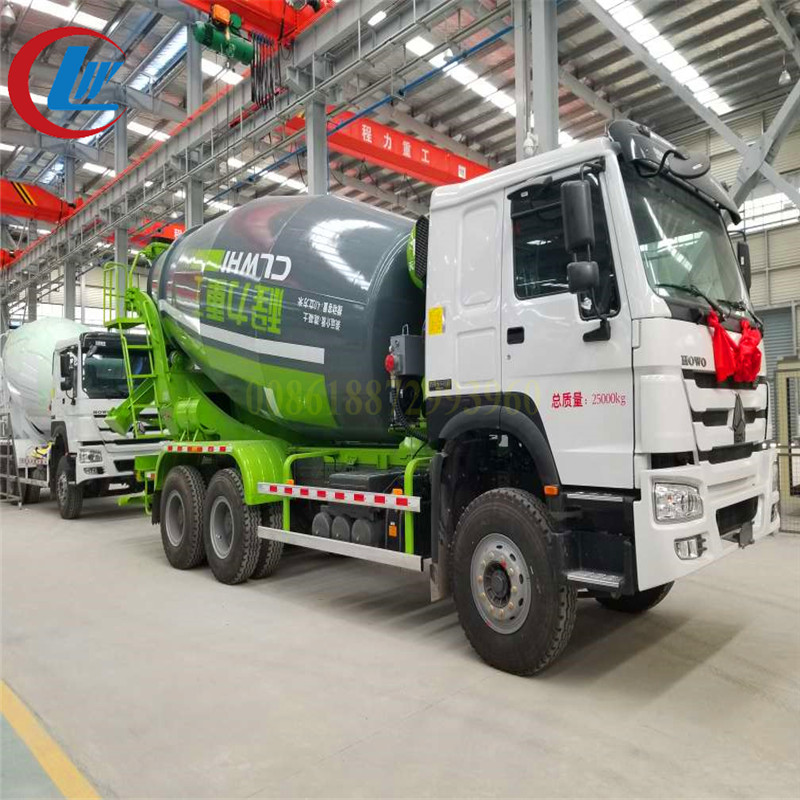

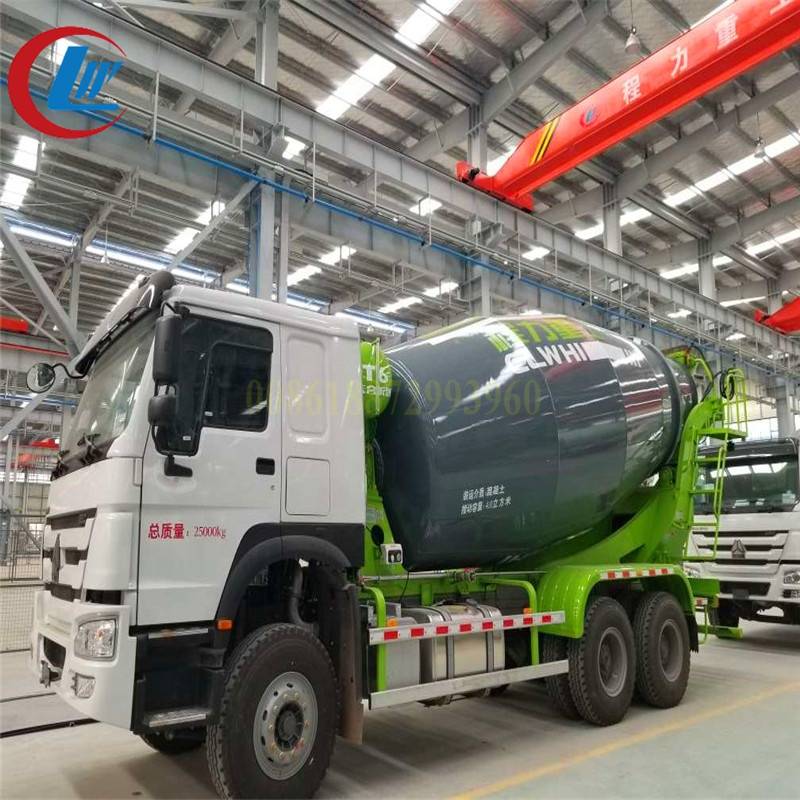

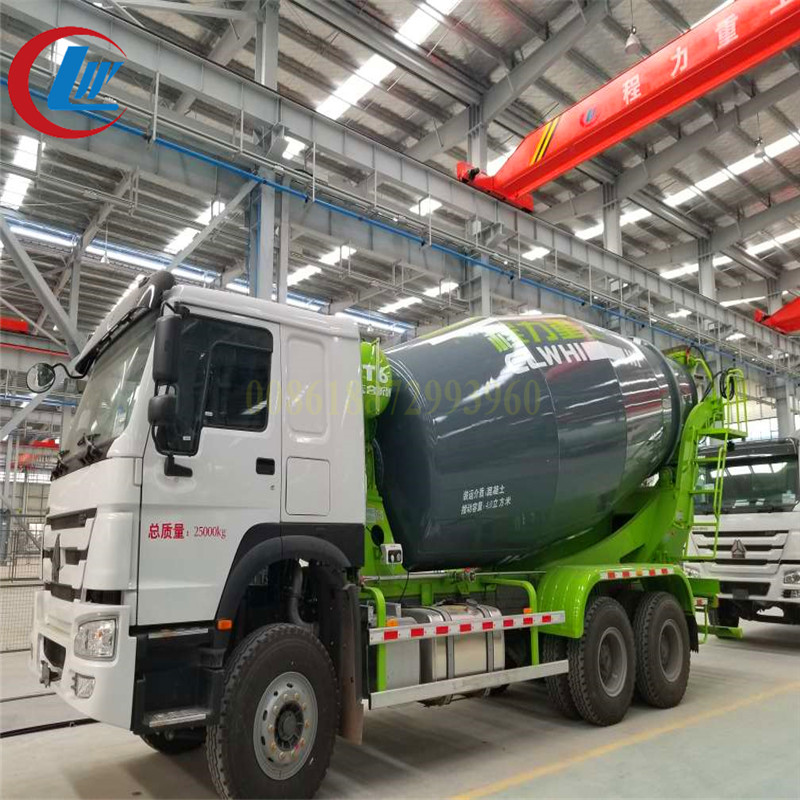

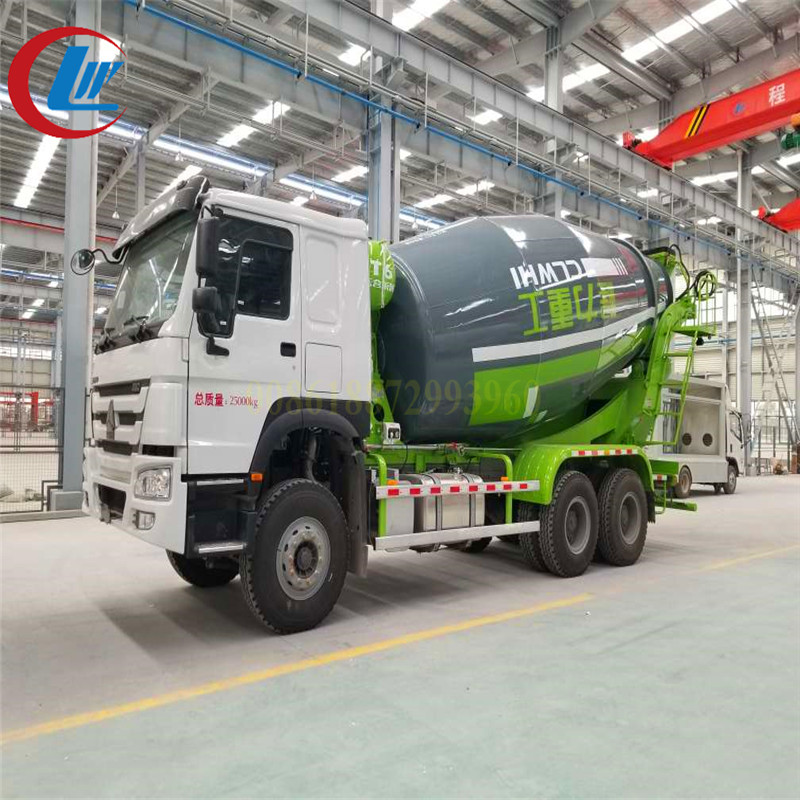

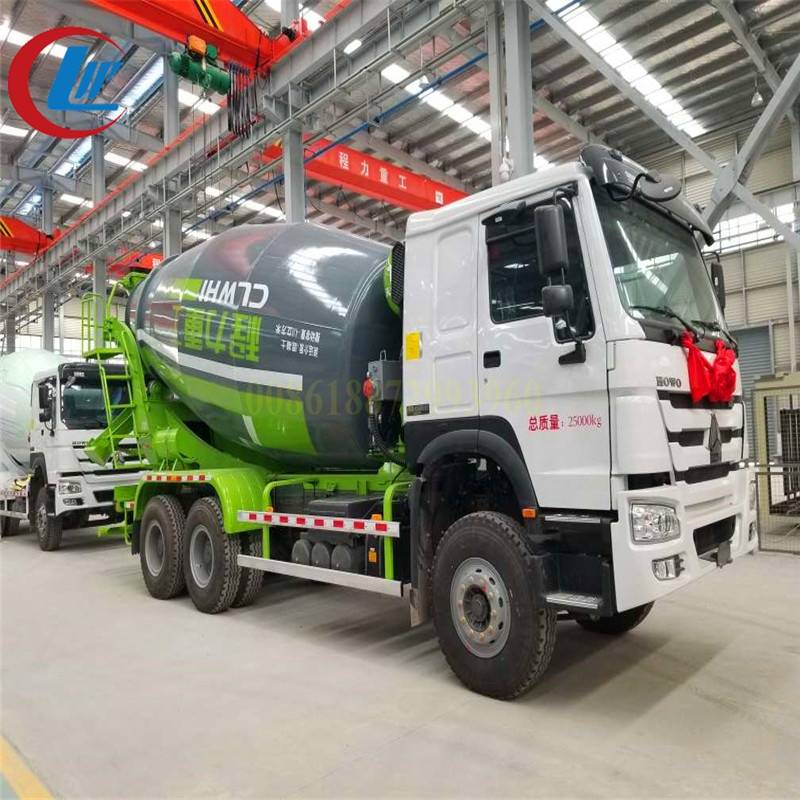

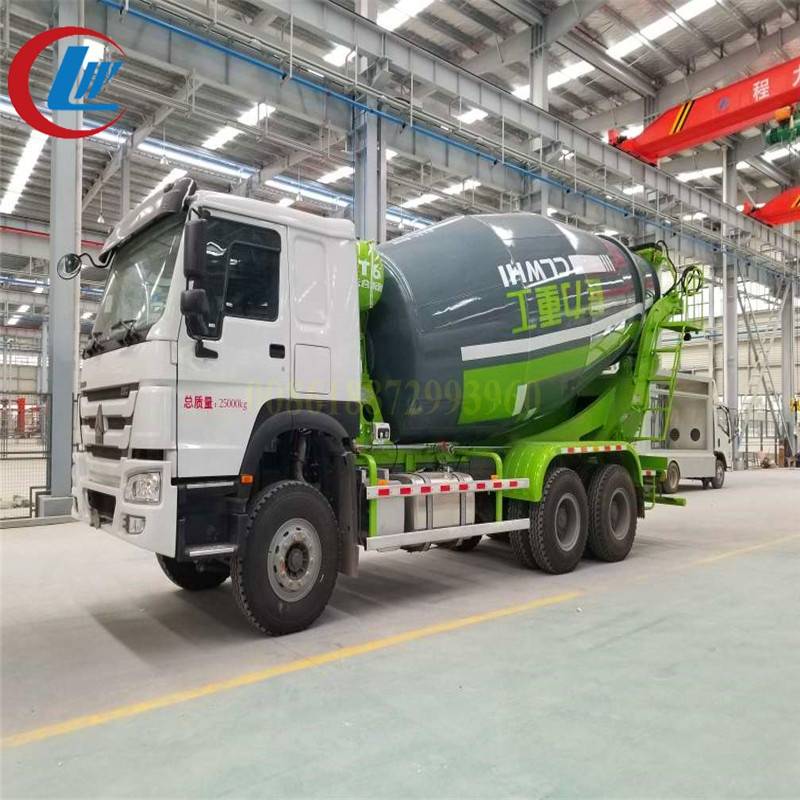

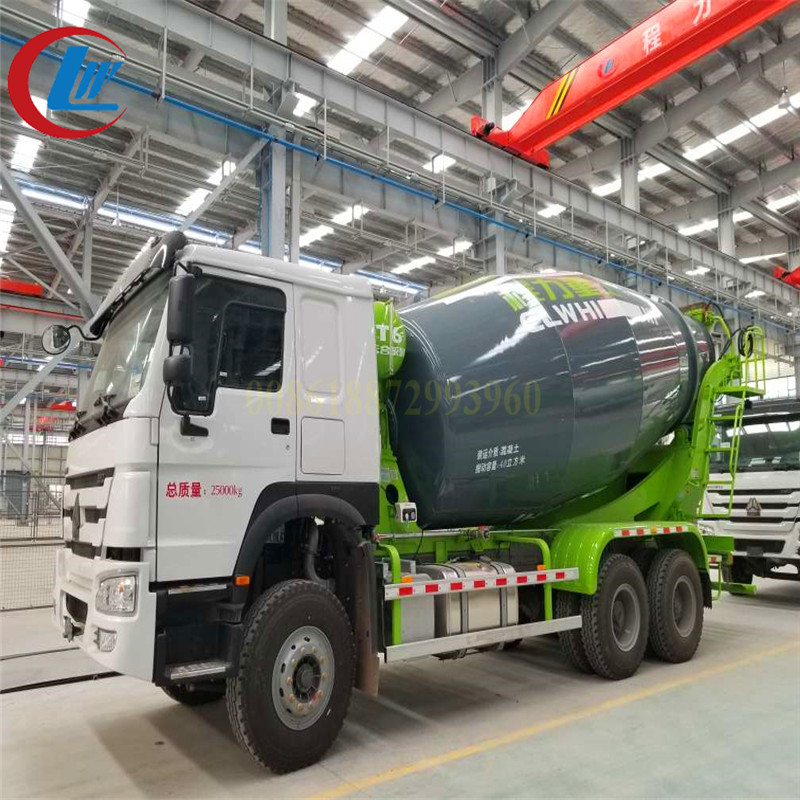

Photos for mixer turcks
Packaging & Shipping
- Packaging Details
1. Packaging: nude or waxing or CONTAINER or RO-RO or Frame
2. Shipping: In the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;We can supply different and professional shipping solution for your customized product to one-stop service.
- Port
- SHANGHAI , WUHAN , LIANYUANGANG , TIANJIN
- Lead Time :
Quantity(Pieces) 1 – 1 >1 Est. Time(days) 35 To be negotiated
Our Services
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
Company Information
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company.Chengli registered trademark: "Cheng Liwei" brand, the national product code: "CLW", is the only Chinese first won the "China well-known trademark" special purpose vehicle manufacturing enterprises.
CHENGLI SPECIAL PURPOSE VEHICLE CO., LTD. Technical force is rich, detection means complete, with large equipment 750 units (sets) and 16 final assembly production line.Product quality is stable, flexible mode of operation, the company is now fully passed ISO9001-2008 international quality system certification, product all through 3C international compulsory product certification, and export products through the various authentication."Cheng Liwei" national announcements list on the product has more than 680 varieties.
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 11 years’ experience.
Q2: What is the lead time?
A: Normally it will take 10-25 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
