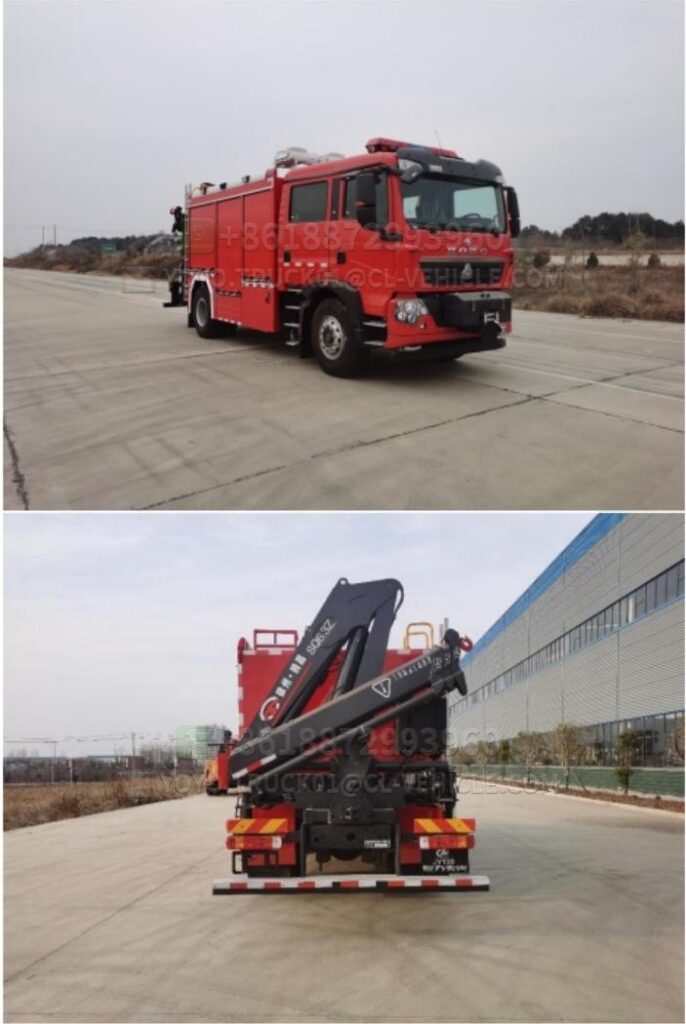

HOWO Model 130 National VI Emergency Rescue Fire Truck

CLW5140TXFJY130/AXF type emergency rescue fire engine

(Howo ZZ5207TXFV471GF5 chassis)

Technical Specification Sheet

1. Overview of the vehicle

CLW5140TXFJY130/AXF type emergency rescue fire truck, modified from type ZZ5207TXFV471GF5 type II chassis of Jinan Truck Co., Ltd. of Sinotruk Group. The vehicle consists of two major parts: the cab and the body. The cab is designed as a double row and can accommodate 2+4 people. The vehicle is comfortable and light to ride. The vehicle is equipped with a 24V electric towing winch, which can pull about 10 tons of cargo; The equipment box is equipped with high-power generator sets and can be built with various frames and pallets for emergency rescue equipment as per customer requirements. The roof is equipped with a lifting lighting system, which can lift up to 8 meters off the ground and is equipped with 4 1000W lighting lamps. The rear is equipped with a hydraulic crane that can lift up to 6300kg of goods.

The fire performance of the vehicle complies with GB7956-2014 standards; The chassis is certified as a national compulsory product; Engine emissions meet the requirements of GB17691-2018 Stage VI limits (National VI standard); The vehicle has passed the inspection of the National Fire Equipment Quality Supervision and Inspection Center and has been included in the Ministry of Industry and Information Technology’s announcement of new automotive products.

2. Main parameters of the vehicle

Chengli Jiayun Emergency Fire Truck Professional Factory: Workshop 2, Building 3, Area A, Chengli Special Vehicle Industrial Park, Pingyuangang, South Suburb, Suizhou City, Hubei Province

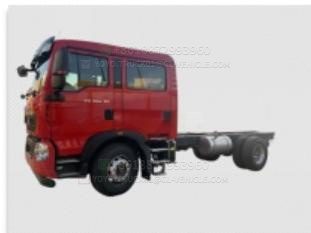

Iii. Main Parameters of Chassis
Model Number	CNHTC Jinan Truck Co., Ltd. ZZ5207TXFV471GF5
Engine	China Heavy Duty Truck Group Co., LTD
Model	MC07H.35-60
Power rate	257kW
Drive type	Rear-wheel drive
Wheelbase	4700mm
		Reference picture, subject to actual supply.
Emission standards	GB17691-2018 National VI

5. Structure of the equipment box

Material	The water skeleton and outer skin are made of high-quality carbon steel; The inner plate is an oxidized aluminum alloy checkered plate bonded structure.
Structure	The equipment box is a sealed box structure, and the exterior is welded with a frame; The inner skin is made of 1.2πm aluminium alloy with a small floral pattern. The internal frame of the equipment box is layered according to the specifications and dimensions of the equipment. There are three aluminium alloy roller shutters on each side of the equipment box, with anti-slip flip steps below.
Climb ladder	Installed at the rear of the equipment box, quick to go up and down, with stainless steel handrails.
Rolling shutter door	Three alloy roller shutters are installed on each side of the equipment box.
Pick-and-place mechanism	Designed and arranged according to the equipment required by the fire brigade, it can be in the form of vertical pull-out plates, vertical rotating cabinets, flat drag plates, push-pull drawers, etc., to ensure quick access and placement of equipment.

Chengli Jiayun Emergency Fire Truck Professional Factory: Workshop 2, Building 3, Area A, Chengli Special Vehicle Industrial Park, Pingyuangang, South Suburb, Suizhou City, Hubei Province

	Easy to push and pull, reliable to lock.	Please refer to the drawing. The actual supply shall prevail.
Flip the pedal	Material: The frame is made of high-quality carbon steel rectangular tubes.
	Structure: Special spring chain and door stop double locking, safe and reliable.
Topcoat	Domestic paint, fire red for cab and body (GB3181R03 bright red), black for chassis frame, grey for mudguards and bumpers. Reflective markings are affixed around the vehicle body.

6. Traction winch system
Model	N16800XF 24V
Drive form	Electric
Maximum pulling force	70KN
Wire dimensions	13.2 mmx38m
Installation position	Located at the front of the vehicle	Reference picture, subject to actual supply.
System Composition
Lighting system	1 gimbal (automatically resettable), 4 main lights.		Reference picture, subject to actual supply.
Control system	1 Electrical control box, 1 wireless remote control, 1 handheld controller.
Lift mast system	1 pneumatic lift pole (aluminum alloy), 1 set of control solenoid valves
Generator system	A set of engine system with a power generation capacity of no less than 9.6KW.

Main technical parameters

Generator voltage	220V/380V	Reference diagram, subject to actual supply.
Main light power	1000Wx4
Main light operating voltage	AC220V
The working air pressure of the lifting pole	Acuity 0.3 MPa
Maximum ground clearance	8m
Pan-tilt operating voltage	220V/24V
Rotation Angle	(360 °)
Rise time	≤120s
Descent time	≤120s
Horizontal turn time	≤50s
Pitch time	≤50s
Control box input voltage	AC380V
Wind resistance rating	Level 8

8. Truck-mounted crane system
Model number	SQ6.3 Z
Maximum lifting capacity	6300kg
Maximum working range	8.2 m
Drive type	Hydraulic
Rotation Angle	– 90 ° ~ 90 °
Installation position	Located at the rear of the vehicle
Maximum working height	8.2 m	Reference drawing, subject to actual supply.
Installation form	Rear-mounted

Ix. Electrical System
1. The top of the cab is equipped with a long row of red luxury warning lights.
2. The alarm power is 100W.
3. One fire scene light is installed on the roof; Safety sign lights are installed on both sides of the vehicle.

Reflective markings are affixed to the body and rear as standard.	Reference picture, subject to actual supply.
4. All equipment boxes are equipped with LED lights for the purpose of night combat lighting.
5. Three flashing lights on each side of the vehicle, two side lights with front and rear outline lights, and one turn signal on each side, all in compliance with GB4785.
6. The alarm, warning lights, strobe lights and circuits are independent additional circuits, and the controller is installed in the driver’s cabin.
7. All circuits are distinguished by their connection forms and functions.

10. General Technical Requirements
11. 1. All structural components shall be welded with CO2 shielded welding, which shall be firm, smooth, clean and free of false welds. Rust and corrosion protection shall be in compliance with relevant regulations

2 The vehicle performance shall comply with the requirements of relevant regulations such as GB7956.1 and GB7956.14;

3. Fire truck markings comply with GB7258-2017 “Technical Conditions for the Operation Safety of Motor Vehicles”.
4. 4. The external lighting and signal devices of the fire engine comply with GB4785-2019 “Regulations on the Installation of External Lighting and Signal Devices for Motor Vehicles and Trailers”.
5. The rear lower protection of the fire truck complies with GB11567 “Requirements for Side and Rear Lower Protection of motor vehicles and trailers”.
6. The overall appearance of the vehicle complies with XF39-2016; External dimensions, axle loads and mass limits comply with the relevant provisions of GB1589-2016.
7. All operating switches, instruments, equipment and vehicles are marked with nameplates that comply with the specifications.
