2.5 Configuration List
| Serial Number | Project | Description | Photograph |
| 1 | Emergency power supply
Pump truck |
Chengliwei brand engineering rescue vehicle. The vehicle is highly mobile and truly embodies the concept of a mobile water pump. The equipment can meet the needs of emergency drainage rescue and has a mobile power supply function. The vehicle has the “Announcement of Vehicle Manufacturers and Products” issued by the Ministry of Industry and Information Technology of the People’s Republic of China. The whole vehicle has obtained the 3C certification and the purchase tax exemption announcement, and can be legally registered in the place of purchase.
CLW5180TPSADY |
 |
| 2 | Vehicle chassis | Howo; TX5TX-M cab; Multifunctional steering wheel; Electrically heated rearview mirrors; Main airbag + secondary mechanical seat; MC07H.35-60 engine; HW13709XSTC2 transmission (with hydraulic retarder); VPD75D front axle (disc); MCJ11BG self-adjusting arm single rear axle (drum); Speed ratio 4.63; Double-decker frame (7+4/250); Front and rear standard multi-leaf springs (11/9+8); Bosch steering gear; Standard exhaust system; Special Vehicle Cold Pack; EBS+ESC; Mid-bumper (non-metallic); Regular wheels; 295/80R22.5 tyres (mixed tread /18PR); Hand-electric integrated electric lift; 200L fuel tank; Sinotruk Intelligent Tong B version; Electromagnetic power switch; Optional rear pull hook; Optional BBM11.00R20; 300L fuel tank; Rotary PTO; Sinotruk Intelligent Pass D version. ZZ1187N501GF1 |  |

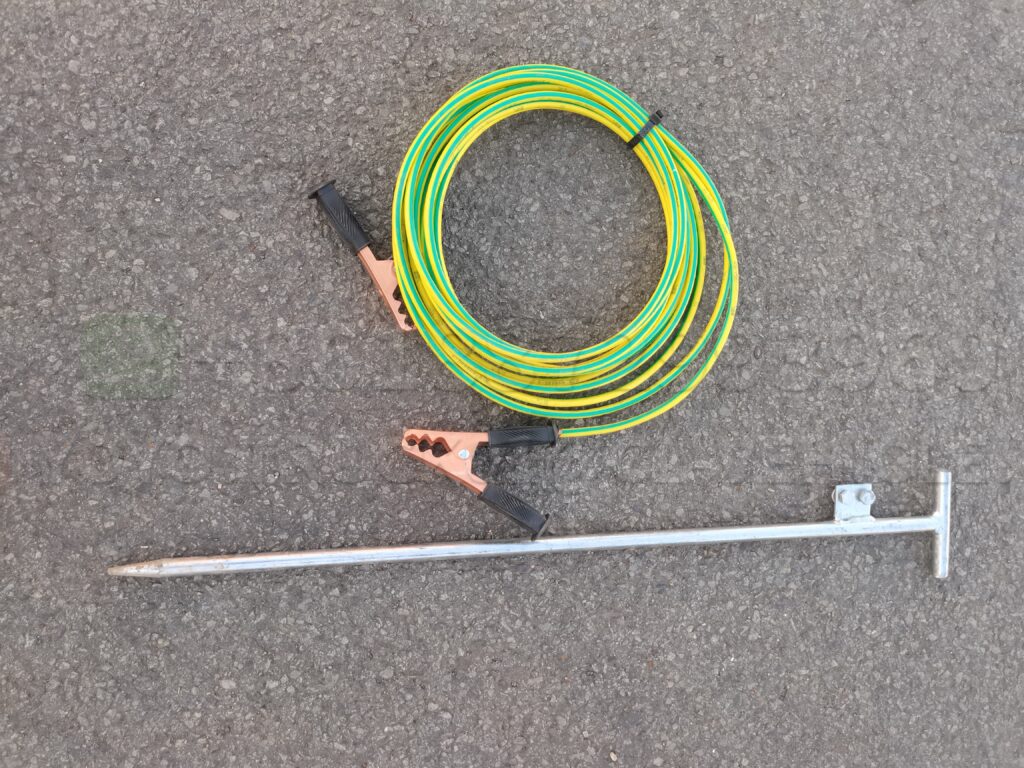

| 3 | Mounting on the ground | Grounding posts and grounding cables are connected to the dedicated grounding post head inside the vehicle box for convenient connection. When the unit is in operation, the grounding wire is connected to protect the safety of the operation. The electrical and mechanical equipment has strict leakage protection measures. During operation, the grounding wire of the entire vehicle is a low-voltage grounding wire equipped with a detachable grounding pin with a diameter of no less than 10mm. The grounding wire is 15 square millimeters and 10 meters in length |  |

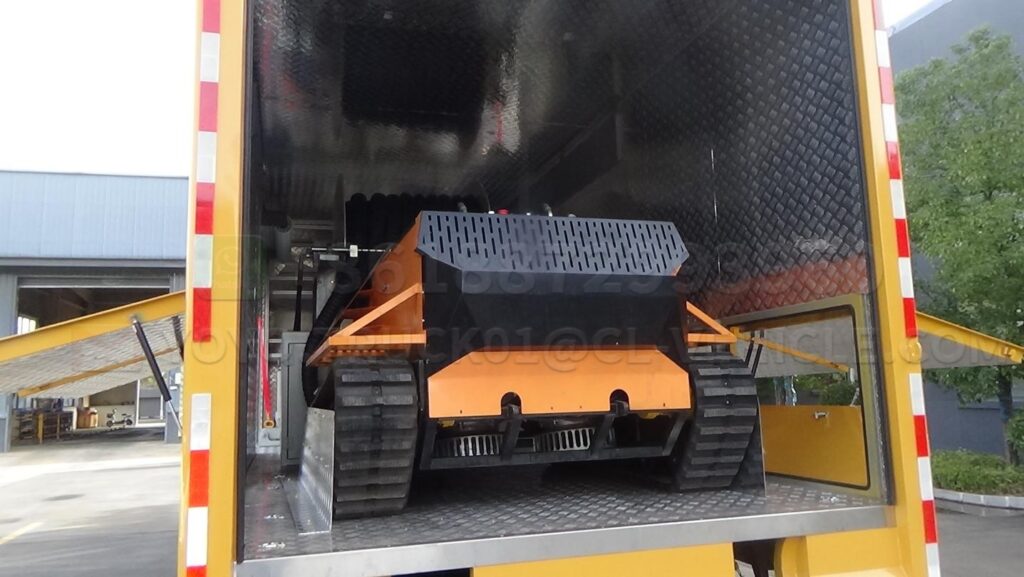

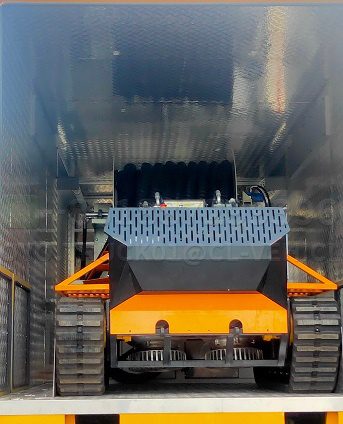

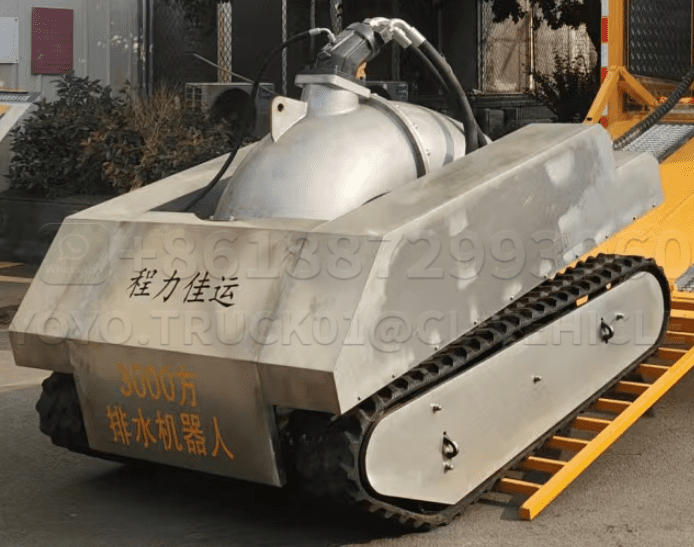

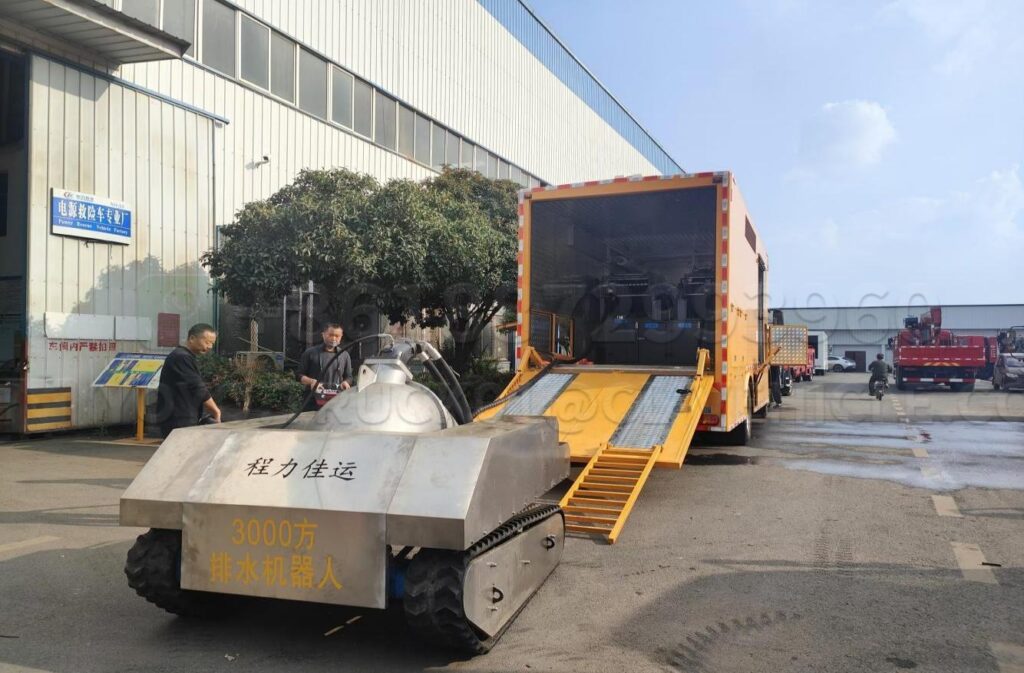

| 4 | Drain robot | The drainage robot is mainly composed of a rubber track chassis, a water pump, etc. The total drainage capacity of the robot is 3000 cubic meters per hour, with a lift of 16 meters. The walking robot chassis is composed of Chris + Matilda four-wheel balanced suspension, with a unique track tension adjustment, drive system tension adjustment, and integrated drive wheels for smoother operation.
|
 |

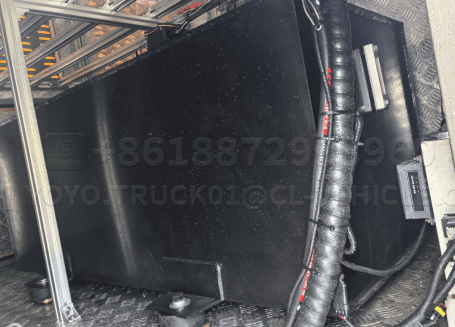

| 5 | Hydraulic oil tank | It can meet the oil supply for the full-load operation of the water pump for 6 hours |  |

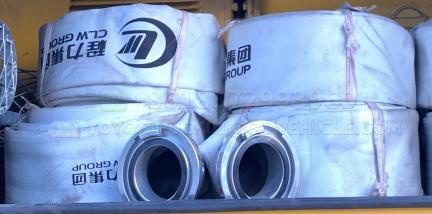

| 6 | Drain belt | It is equipped with a 100-meter drainage pipe with a diameter of DN300mm. The pipe material is woven from polyester filament and coated with wear-resistant resin both inside and out. It is wear-resistant, pressure-resistant, puncture-resistant and foldable. The hose is connected with a quick coupler for easy operation. |  |

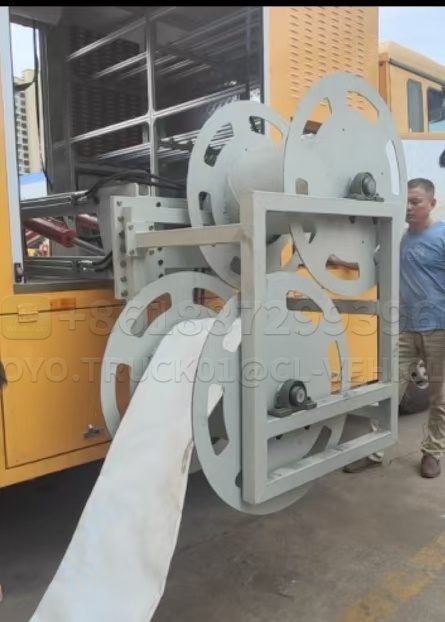

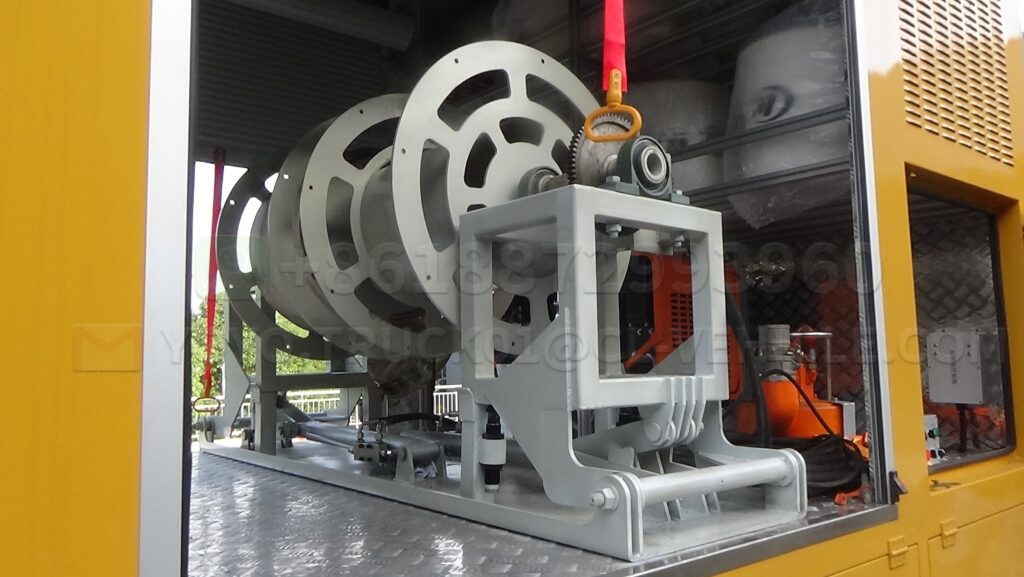

| 7 | Hose reel | The hose reel is hydraulically operated for easy retraction and retraction through a hinge mechanism, making the operation more user-friendly |  |
| 8 | Internal lighting | Philips LED lighting inside the carriage. When the generator set is started, it is powered by the generator set, and when it is shut down, it is powered by the vehicle’s DC battery for convenient switching. |  |
| 9 | Hydraulic tubing reels | 9 hydraulic pipes are connected when the box car is working with the mobile pumping station |  |

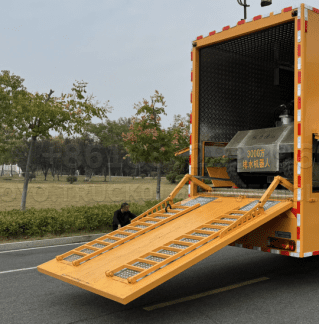

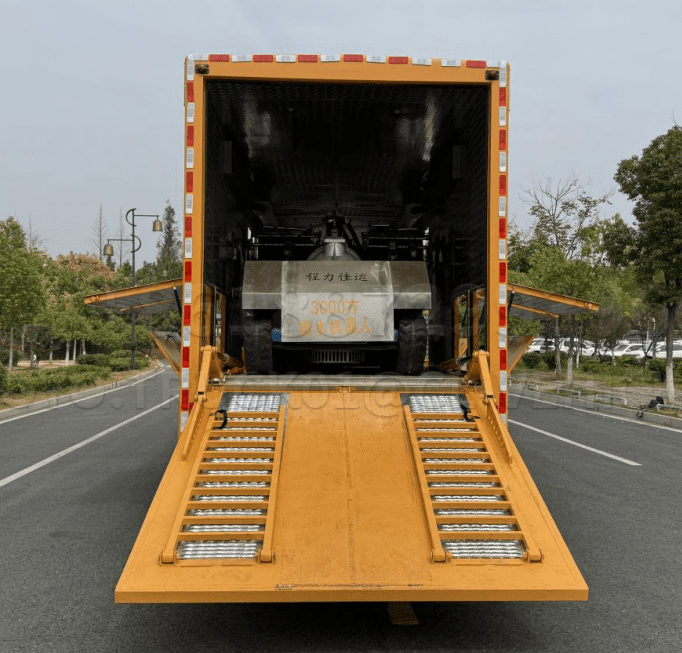

| 10 | Tailboard | A hydraulic tailboard is installed at the rear to facilitate getting things in and out of the vehicle and for the robot to get on and off |  |

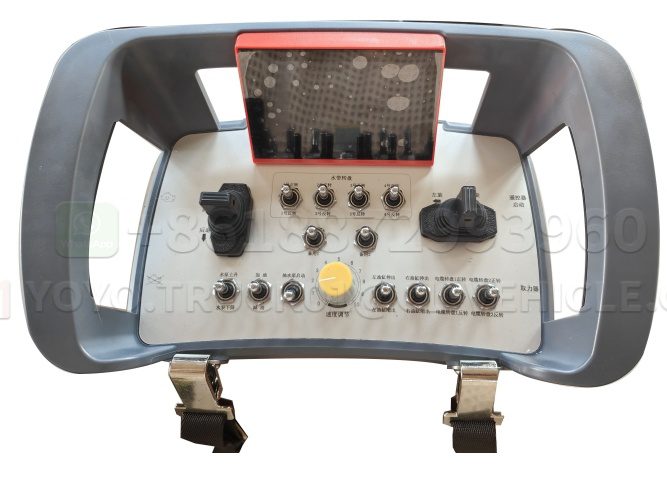

| 11 | Remote control | Remote control + wired control, wireless remote control radius 100 meters |  |
| 12 | Rearview camera | Install a visual reversing camera with a 7-inch display |   |
| 13 | Box | The external steel of the box body is made of high-quality cold-rolled steel plate, and it is lined with a high-quality cold-rolled steel plate bent frame. The process is advanced and the strength is firm. The body is fully sealed and meets the requirements of sound insulation, transportation, rain protection, corrosion resistance, fire resistance and rust prevention. Generator set air intake and exhaust silencing treatment, muffler noise reduction treatment, generator air intake rainproof louvers. |  |
| 14 | External lighting fixtures | One lift lighting fixture is installed in the carriage, with a power of 150×2=300W; Light source form : LED light; Pole lift height 1800mm horizontal rotation Angle 360°; The vertical rotation Angle is 330°, with both remote control and line control operation, and can be used in night environments; |  |
| 15 | Hydraulic support
|
The vehicle is equipped with four hydraulic support legs to evenly distribute the vehicle’s static pressure in the stationary state, protecting the wheels and spring plates. The imported high-quality multi-way valve assembly is selected, the hydraulic support cylinder is equipped with imported seals, the static load of each leg is 8 tons, and a bidirectional hydraulic lock is added. |   |

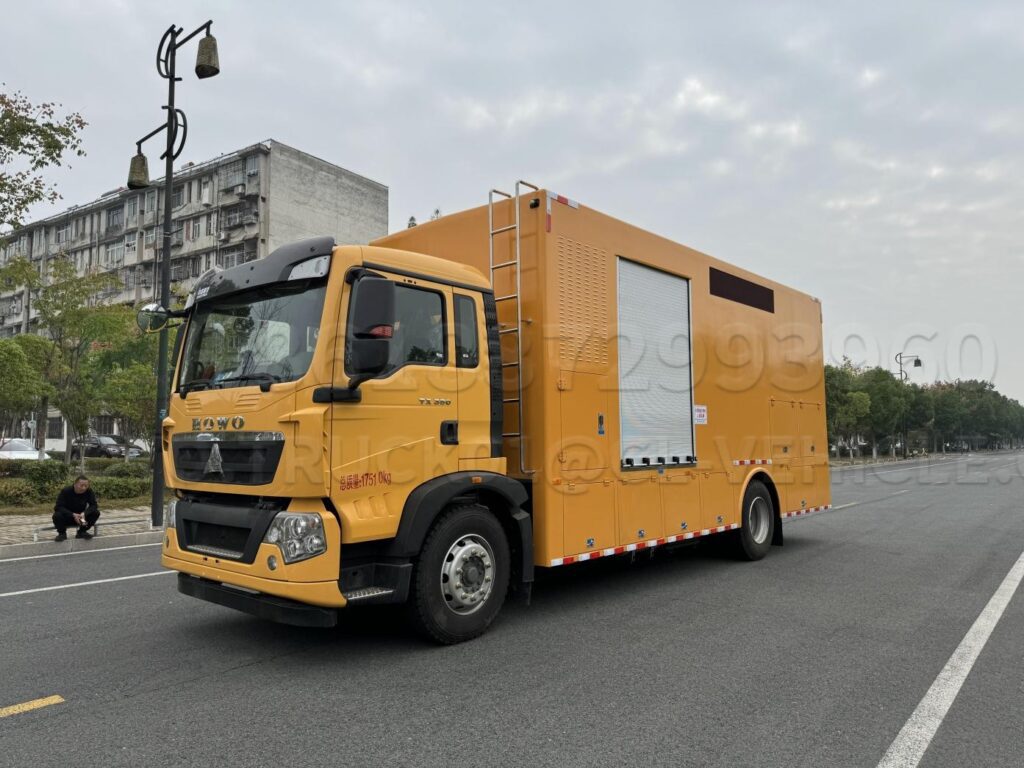

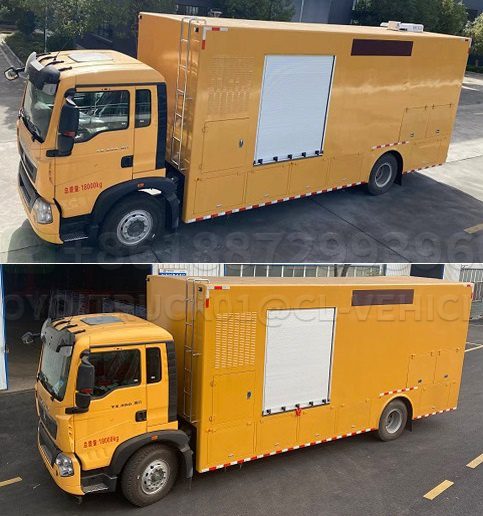

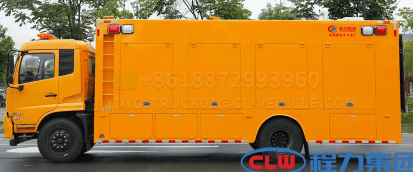

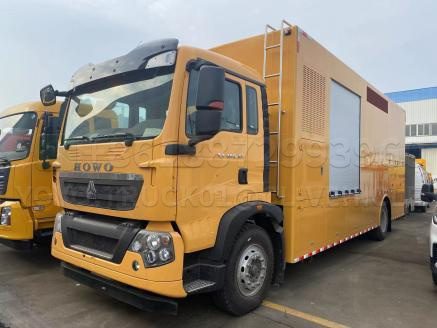

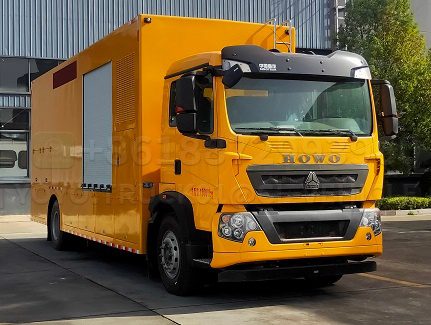

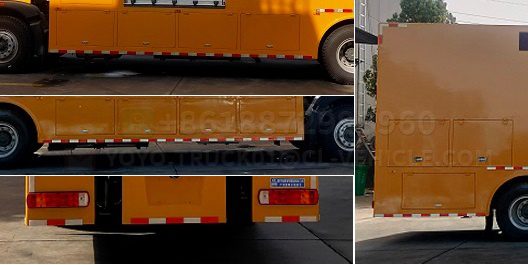

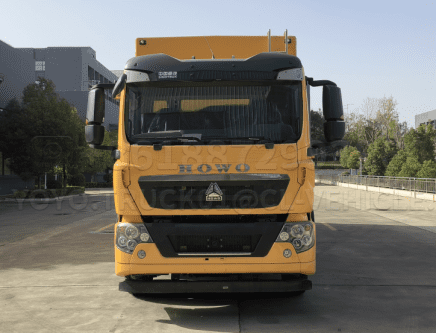

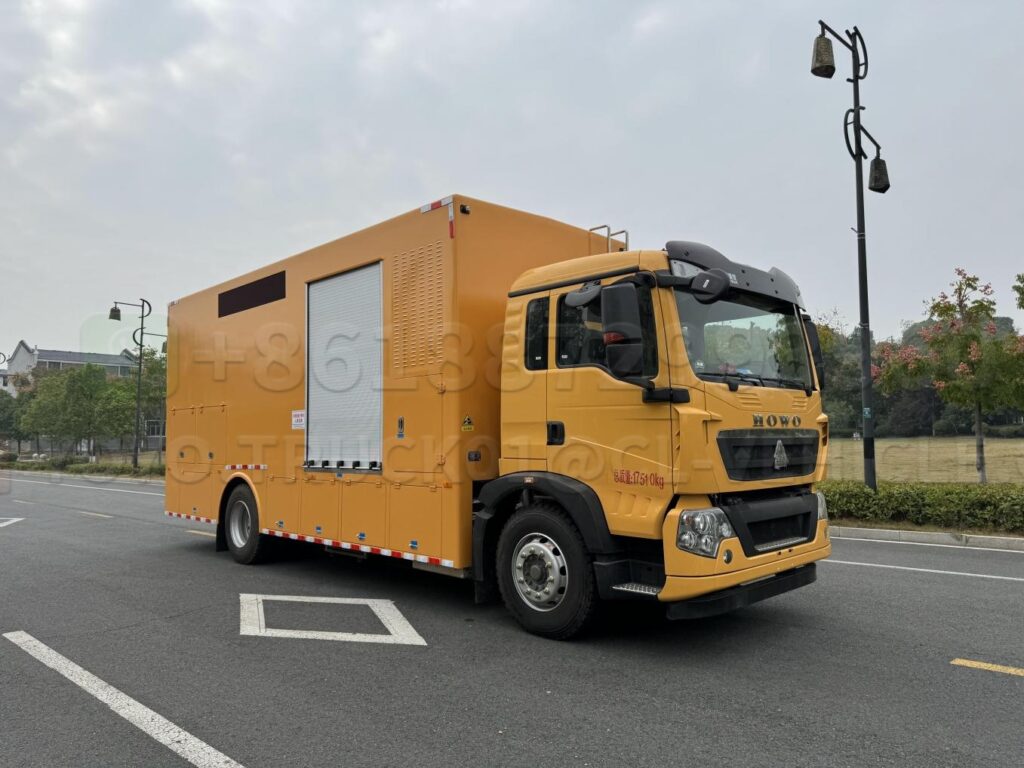

- Vehicle image
 |
 |
 |
 |
 |
 |

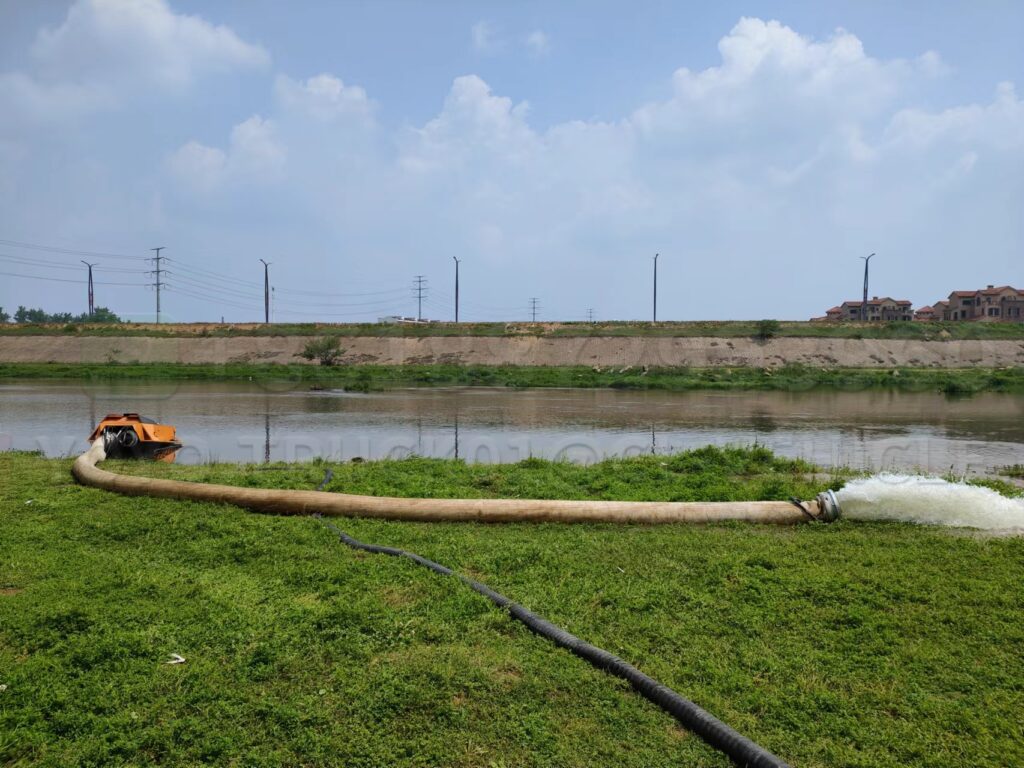

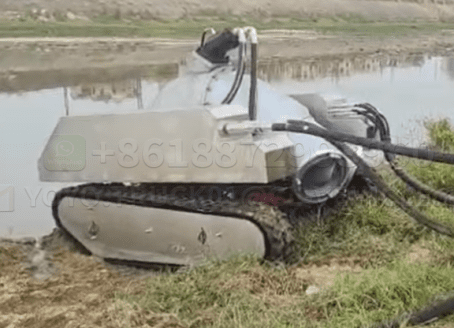

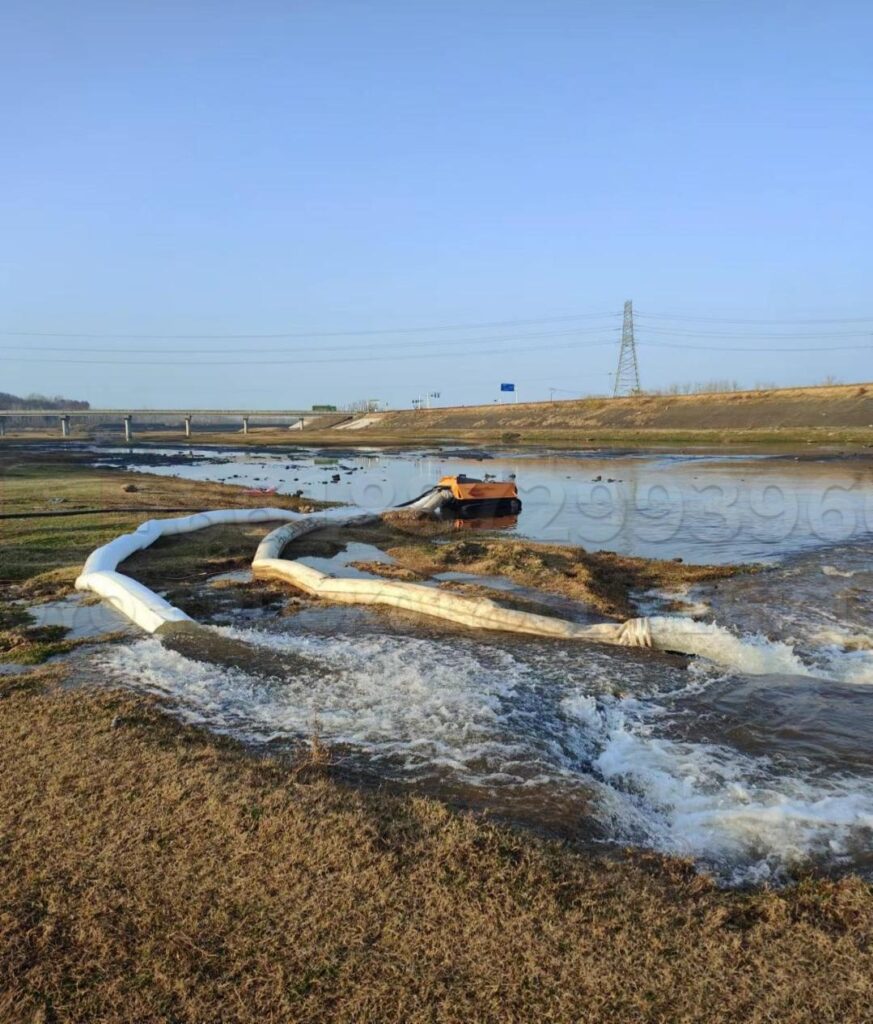

- Drainage drill photos
 |
 |
