Chenglinway Dongfeng Duolika 200KW Mobile Power Supply Vehicle

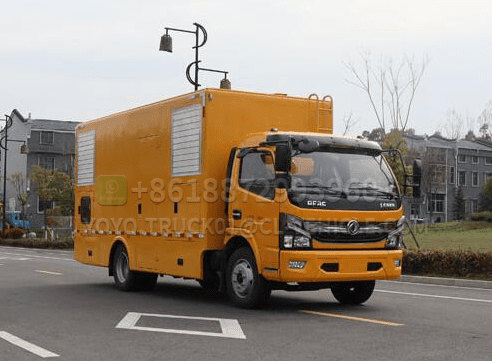

Dongfeng Duolika 200KW power supply vehicle

1.Basic performance of the power vehicle

2.On-board systems

1) Vehicle speed. The power vehicle uses Dongfeng Motor’s engine and chassis and can move at speeds of more than 89 km/ h.

2) Load capacity. In addition to considering the total weight of all equipment for the emergency power supply, there is a margin of 10% to 15% of the vehicle’s load capacity.

3) Humanized operation and maintenance space. When starting and shutting down the unit and observing the instruments, the operator can do it in the in-vehicle operation room. The carriage is spacious and equipped with ancillary facilities to facilitate the maintenance and upkeep of the unit. The operating room is equipped with computers, air conditioners, sofas and other facilities, providing a good working environment for the operators when power is maintained in harsh outdoor conditions.

4) Safety measures. Fire extinguishers are provided at the door inside the carriages, smoke detectors, AC/DC explosion-proof lighting and emergency lights are installed inside the carriages, and there are convenient grounding rods and grounding wires to ensure the safety of the power supply vehicles. It is equipped with an intelligent fire extinguishing system that can operate unattended.

2. Diesel generator sets

1) Diesel engines are selected from Cummins, Yuchai, Weichai, etc.

2) The generator is a brushless self-excited AC synchronous generator from Stamford, Leroy Somer, Marathon, etc.

3) The installation base of the generator set is a bottom-mounted oil tank structure. The oil tank can hold more than 8 hours of oil to meet the requirements of the unit’s operation.

4) The power of the generator set is 300kW. Equipped with cylinder liner water preheating and start-up battery float charging devices, always on standby, the generator set can be fully loaded within 12 seconds after startup, fully meeting the requirements for emergency rapid power supply.

3 Control and operating system

1) The control panel that comes with the unit provides the function of manually starting the unit, can automatically monitor the operation of the unit, provides the protection function of the unit, and provides the indicator table of all parameters of the unit operation on the control panel panel for intuitive viewing of the unit status.

2) Emergency stop button. Press in case of an emergency with the unit. The emergency stop button will control the unit to stop immediately. The button resets when it is confirmed that the unit fault has been eliminated.

3) Micro air switch. When the current is too high and exceeds the set value of the air switch, it will automatically open.

4) When abnormal conditions such as low oil pressure, high coolant temperature, and overspeed of the unit occur, it will automatically alarm or shut down.

4. Outgoing cable system

The power cables of the power vehicle are selected as YC series heavy-duty rubber-sheathed flexible cables, with a length of 30m, to meet the needs of emergency power supply in various special application scenarios. Electrically controlled reels can be used for cable retraction and extension.

2. Technical highlights of the power vehicle
3. Unit shock absorption

The power vehicle uses rubber shock-absorbing pads made by patented technology for shock absorption. The shock-absorbing pad consists of a bowl-shaped upper cover plate and a funnel-shaped bottom plate with rubber material sandwiched between them. This structure has a high load-bearing capacity and a low stiffness and a large damping ratio. The shock-absorbing pads are less likely to cause resonance during vibration, and the large damping ratio causes the vibration to attenuate quickly. When the rubber pads are damaged in extreme circumstances, the unit will not suffer structural damage due to the damage of the rubber pads.

2 Noise reduction technology

The noise level of a typical diesel generator set in operation is around 110 dB. The intake and exhaust Windows of the mobile emergency power supply vehicle are designed with patented technology. The intake and exhaust Windows are opened by gas springs without affecting the unit’s power output and temperature rise requirements, and a set of sound-absorbing baffles are used inside the Windows for noise reduction. The structure is simple, which can both maximize the effective intake and exhaust volume of the unit and meet the requirements for noise reduction. The exhaust system of the power supply vehicle uses A combination of a resistive muffler and an anti-noise device, which can reduce exhaust noise by 35 to 40 dB (A). The side panels of the vehicle are filled with sound-absorbing cotton of a thickness of 50 to 100 mm according to the noise requirements, and rubber sealing strips are installed in all doors and Windows to achieve good sound insulation and noise reduction effects. The power vehicle, after noise reduction treatment, has an average noise level of around 80 dB(A) at a distance of 1 m from the vehicle when fully loaded. The performance is significantly better than that of other similar domestic products.

3. Electric cable winch

The design of the power vehicle uses the patented technology of the electric cable winch. The electric cable winch makes the overall structure simple and compact, while making it easy to arrange several cable winches working side by side.

Dongfeng Duolika 200KW power supply vehicle

Serial Number	Project	Description	Photograph
1	CLW5090XDY6 power vehicle	Power supply vehicles can be called mobile power supply vehicles, emergency power supply vehicles, or power generation vehicles. A multi-functional emergency power vehicle is a special vehicle with a body, generator set and power management system installed on a Type II vehicle chassis. It is mainly used as a mobile emergency backup power source in places such as power, communication, conference, engineering rescue and military where power outages would have a serious impact. Overall vehicle size: 7250*2350*3250 Gross mass: 9400KG Curb mass: 9205KG
2	Vehicle chassis	Equipped with Dongfeng Duolika chassis, single-row reversible cab, National VI emission standard, Yuchai 165 horsepower engine; Wheelbase 3800mm; 8.25R20 wire tires, original factory air conditioning, original factory hydraulic power steering, original factory ABS, original factory on-board tools

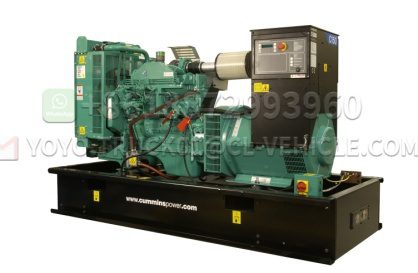

3	Generator set	Select Yuchai generator set, rated output power 200KW, rated frequency 50HZ, rated voltage 230/400V. Speed control mode: Electronic speed control. Start the battery, battery master switch. It comes with a base fuel tank and can work continuously for more than 8 hours
4	Mounting on the ground	Grounding posts and grounding cables are connected to the dedicated grounding post head inside the vehicle box for convenient connection. When the unit is in operation, the grounding wire is connected to protect the safety of the operation. The electrical and mechanical equipment has strict leakage protection measures. During operation, the grounding wire of the entire vehicle is a low-voltage grounding wire with a detachable grounding pin
5	Control system	The control system adopts a domestic well-known brand automation control module intelligent control system, centralized control, Chinese interface, automatic obstacle protection function, selected high-quality electrical components, stable performance, safe and reliable, in addition to comprehensive control, detection, display and protection functions, the control system also has innovative standby self-check, fault diagnosis and display functions.

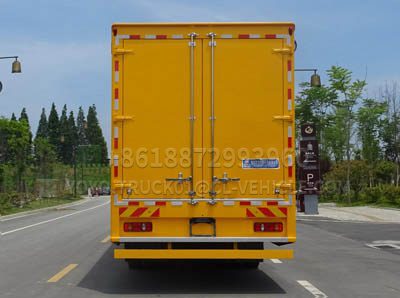

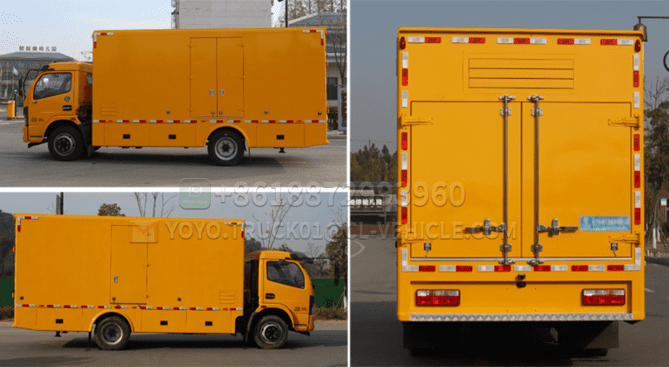

6	Box body	The outer steel of the box body is high-quality cold-rolled steel plate, lined with high-quality cold-rolled steel plate bent frame, advanced technology, firm strength. The body is fully sealed and meets the requirements of transportation, rain protection, anti-corrosion, fire protection and rust prevention. The rear of the carriage has double doors. The intake and exhaust air of the generator set is silenced, and the muffler is silenced.
7	Material of the filling inside the box	The box is filled with fire-resistant and sound-absorbing cotton. Features of flame-retardant sound-absorbing cotton: 1、It has excellent sound insulation effect. Sound is blocked through the surface layer and enters the small foam holes, where it is absorbed by the friction and vibration of the air inside the holes, effectively blocking the transmission of sound Thermal insulation, low thermal conductivity, excellent thermal insulation, cold insulation and heat insulation effect 2、Moisture-proof, the material is closed-cell foaming, which can prevent water vapor from penetrating and reduce the occurrence of condensation. 3、Good flame retardancy. The material contains flame-retardant and smoke-reducing materials that extinguish when removed from the fire. 4、The box has a combination of functions such as soundproofing, heat insulation, dust-proofing, rain-proofing and shock-proofing. Professional sound insulation treatment, good sound absorption effect, effective noise reduction, overall aesthetic. When fully loaded, the average noise level is around 85 dB(A) at a distance of 1 m from the carriage
8	Step ladder	The aluminium alloy treads are beautiful and convenient, and can carry about 150KG
9	External power supply	The box is equipped with one 380V socket for 5KW power output and one 220V universal socket. It can power the welding machine or other electrical appliances
10	Internal lighting	Philips LED lighting inside the carriage. When the generator set is started, it is powered by the generator set, and when it is shut down, it is powered by the vehicle’s DC battery for convenient switching.

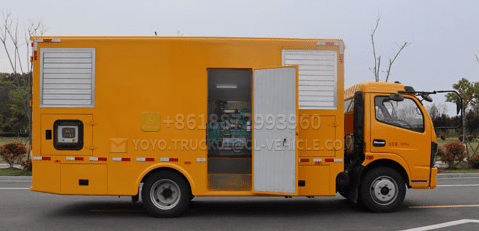

11	View window	Generator set inspection window, standing on the ground for operation, facilitates timely inspection of the working condition of the generator set
12	Electric blinds	Blinds for generator set intake and exhaust treatment, strong heat dissipation capacity, easy and simple operation
13	Fire protection	Two portable dry powder fire extinguishers are provided and placed in easily accessible locations on the vehicle.
14	Reversing impact	Visual reversing effects, 7-inch display
15	Electric reel	Electric winch, located at the rear of the carriage. Use the ‘electric cable winch’ with patented technology. It is very easy to operate and can be coiled up and down freely. The cable length is 50 meters

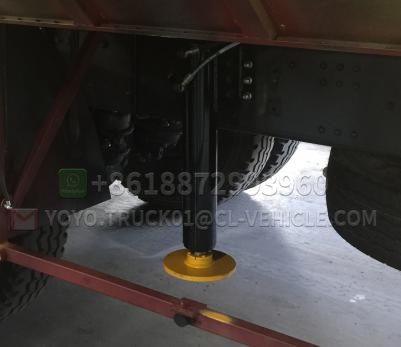

16	Hydraulic outriggers	A single leg can carry 5 tons, reducing tire pressure and leaf spring weight
