Lpg tank tanker semi trailer truck for sale in dubai
LPG Semi-trailer
CLW has 20-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, CLW can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. CLW has cooperated with the international reputed sulliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..
Technical speccification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732
Volume: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Vehicle type:
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Note:
The information of CIMC HONTO LPG semi-trailers listed as below are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.
SPECIFICATIONS
|
I. ASME Code | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
38.3m³ |
46m³ (with pump) ** |
47.5m³ |
55m³ |
58m³ |
60m³ (with pump) ** | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
*Max. Payload |
18000kg (19.15 t) |
21300kg (23 t) |
23000kg (23.75 t) |
25710kg (27.5 t) |
26130kg (29 t) |
25500kg (30 t) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Kerb Weight |
11900kg |
16900kg |
14000kg |
16790kg |
17300kg |
22150kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Vehicle Weight |
29900kg |
38200kg |
37000kg |
42500kg |
43430kg |
47650kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Outline Dimension |
L:10470mm W:2550mm H:3920mm |
L:13152mm |
L:13137mm W:2500mm H:3850mm |
L:14297mm |
L:13238mm W:2640mm H:4050mm |
L:13052mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Design Pressure |
1.724 MPa |
2.26 MPa |
1.724MPa |
1.724MPa |
1.724MPa |
2.5MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAWP |
1.724 MPa at 51.7¡æ |
2.26 MPa at 70¡æ |
1.724MPa |
– |
1.724MPa |
2.5MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Design Temperature |
51.7¡æ |
70¡æ |
-23.3/51.7¡æ |
50¡æ |
-23.3/51.7¡æ |
-40/+70¡æ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Corrosion Allowance |
0mm |
2mm |
0mm |
0mm |
0mm |
1mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Material of Shell |
SA-612M(N) |
SA-537M |
SA-612M(N) |
SA-612M(N) |
SA-612M(N) |
SA-612 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Material of Head |
SA-612M(N) |
SA-537M |
SA-612M(N) |
SA-612M(N) |
SA-612M(N) |
SA-612 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thickness of Shell |
12.5mm |
15mm |
12mm |
12.5mm |
14mm |
16mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thickness of Head |
8mm |
10mm |
8mm |
8mm |
8mm |
16mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Test Pressure (Hydraulic Horizontal) |
2.25MPa |
3.4MPa |
2.24MPa |
2.25MPa |
2.25MPa |
3.58MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Air Test Pressure |
1.724MPa |
2.26MPa |
1.724MPa |
1.724MPa |
1.724MPa |
– | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

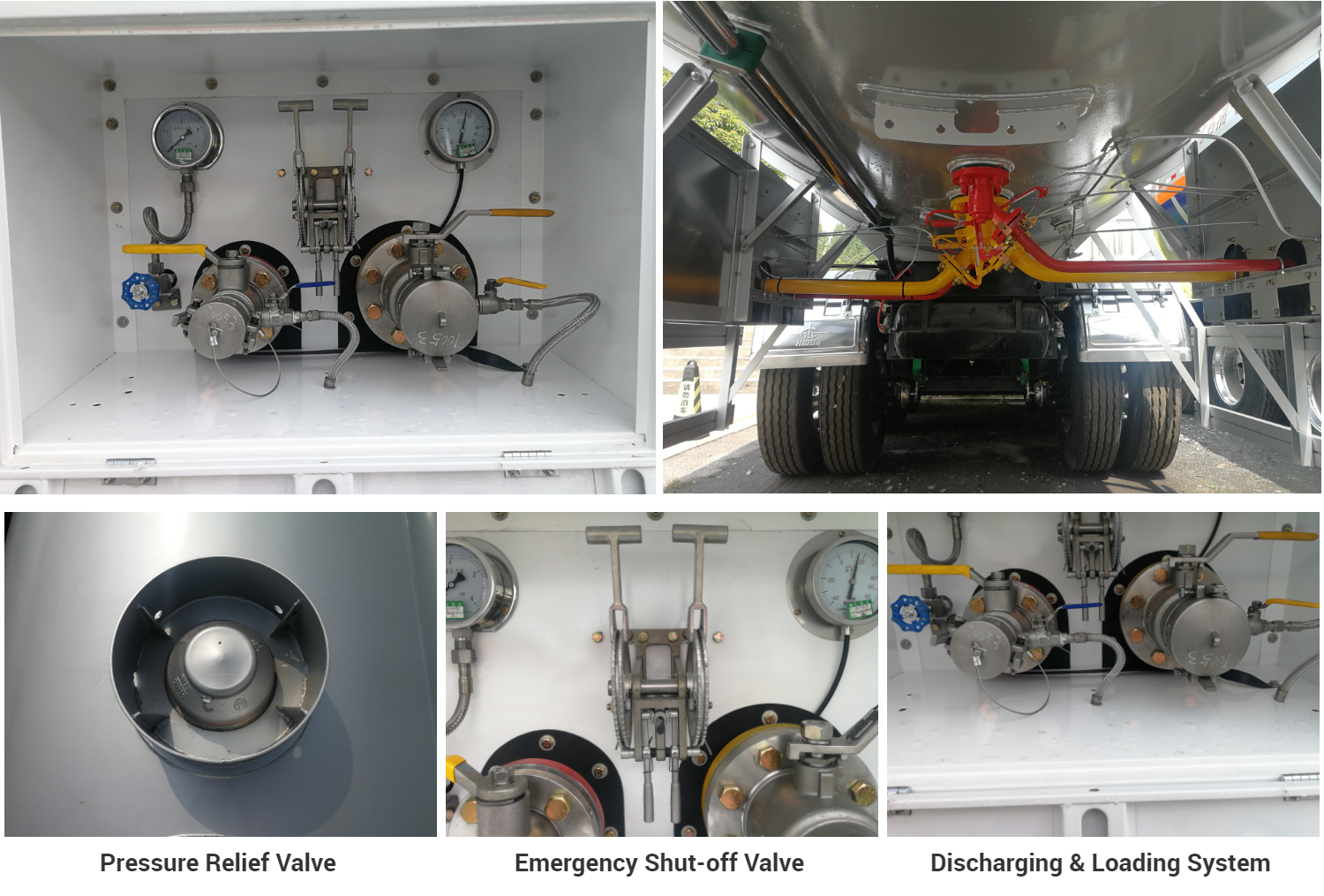

Valves & Instruments
Packaging & Shipping
Packaging Details Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc
- Port any port of
China
ChinaOur Services
Company Information
Cheng Li Special Automobile (Manufactory) Corporation Limited, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW and SNJ. Our company has independent export right and has amount of clients in overseas.
Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 11 years' experience.
Q2: What is the lead time?
A: Normally it will take 10-25 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
