Product Description
JAC 6×4 head truck used tractor for sale
| Vehicle Model | HFC4251KR1 (420hp) | ||
| Drive model | 6×4 | ||
| Size Parameter | Overall dimension(L×W×H) (mm) | 7000×2560×3680 | |
| Wheelbase(mm) | 3300+1350 | ||
| Front Tread/Rear Tread (mm) | 2044/1880 | ||
| FF/AF(mm) | 1495/770 | ||
| Refitted Part | Retractor Brand and Tractor pin diameter (mm) | Standard:JOST 3.5'' (90#) | |
| Main configuration | Cab | Type | Standard: K5 High roof cab with two beds. |
| Air Seat for driver, AC, Power window,MP3 | standard | ||
| Cabin suspension | 2 springs in front and 2 springs in rear | ||
| Electronic control flip | standard | ||
| Engine | Model | WP12.420E32 with reinforced engine fan hub | |
| Emission levels | E-II | ||
| Max output power(hp/rpm) | 420/2200 | ||
| Max torque(N·m/rpm) | 1750/1300-1600 | ||
| Displacement (cc) | 11596 | ||
| Oil pump | Domestic | ||
| Clutch | Model | Single, dry plate, diaphragm spring,VALEO | |
| Specification | 430 | ||
| Transmission | Model | 12JSD180T with reinforced gearbox support | |
| Gear position | R2/R1 7/1 9/3 11/5 8/2 10/4 12/6 | ||
| Gear ratio | 15.53/1.00 | ||
| PTO | Standard: QH70 | ||
| Front axle | Modlel | "¢ñ"style break face | |
| Maximum capacity(Kg) | 9000 | ||
| Rear axle | Model | BENZ Technology | |
| Ratio | 4.76 | ||
| Maximum capacity (Kg) | 16000 | ||
| driveshaft | Specification | Φ140×6 | |
| Steering | Type | Power steering with BOSCH steering gear | |
| Oil | Fuel tank material | Aluminum Alloy | |
| Fuel tank capacity (L) | 500L | ||
| Brake | Type | Dual-circuit air brake | |
| Tire | Model | 13R22.5 18PR | |
| Suspension | Type | parapolic leaf spring 10/12 heavy load version with four-u-bolt rear suspension system | |
| Front axle stabilizer bar | standard | ||
| Rear axle stabilizer bar | standard | ||
| Electrical System | Batteries | 12 volt-140Ah×2 | |
| Alternator | 28 volt / 70 amp | ||
| Starter | 24 volt /5.4KW | ||
| Expansion tank | Reinforced expansion tan | ||

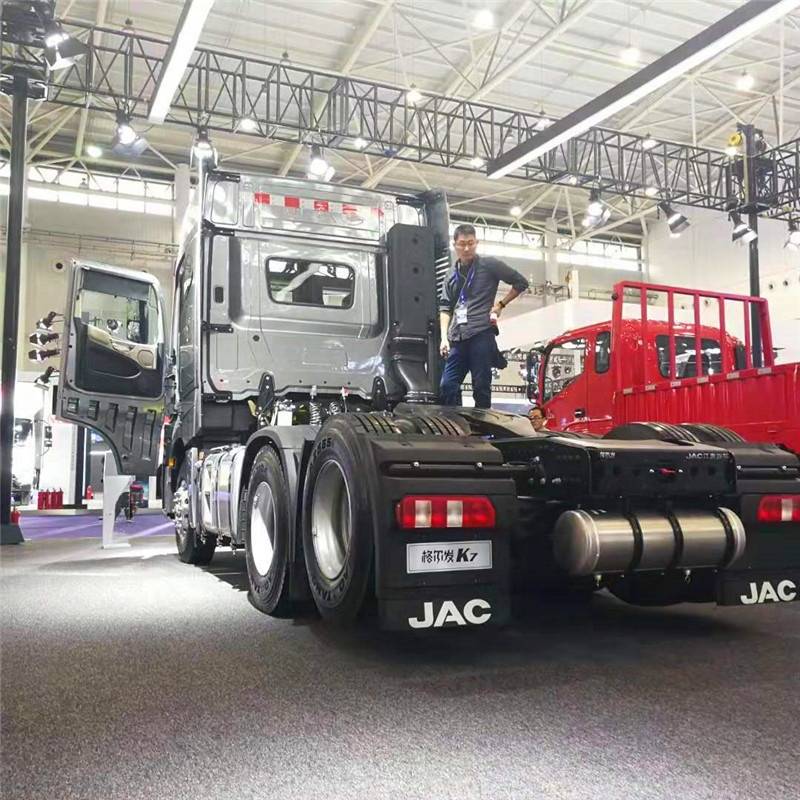

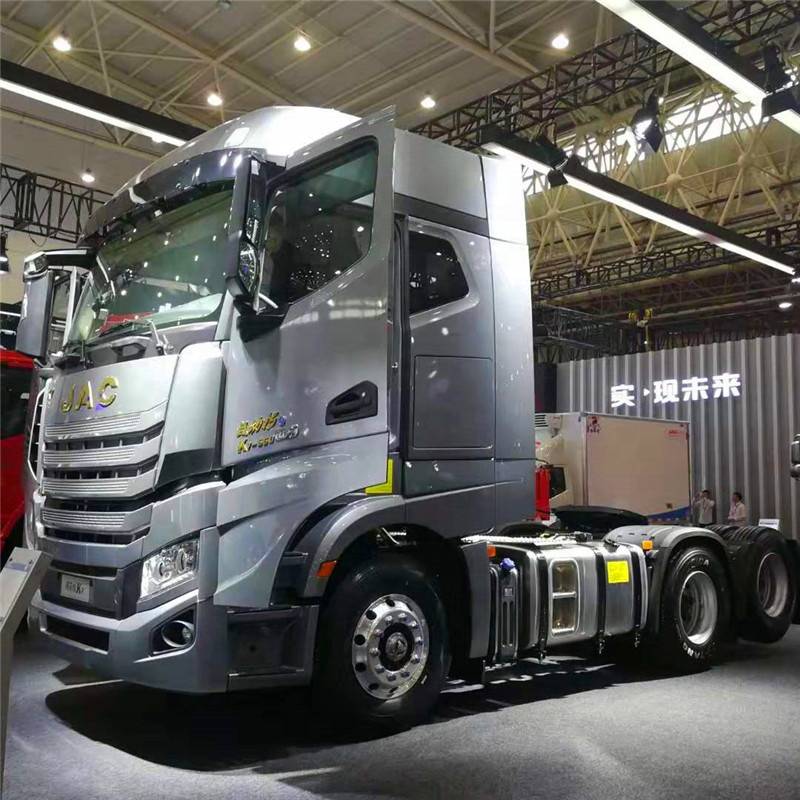

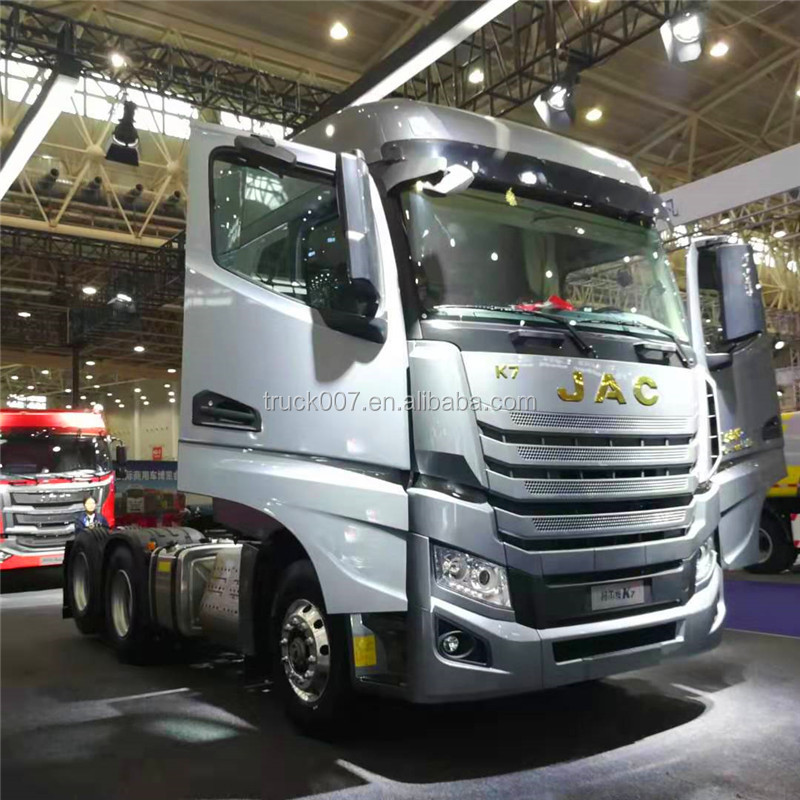

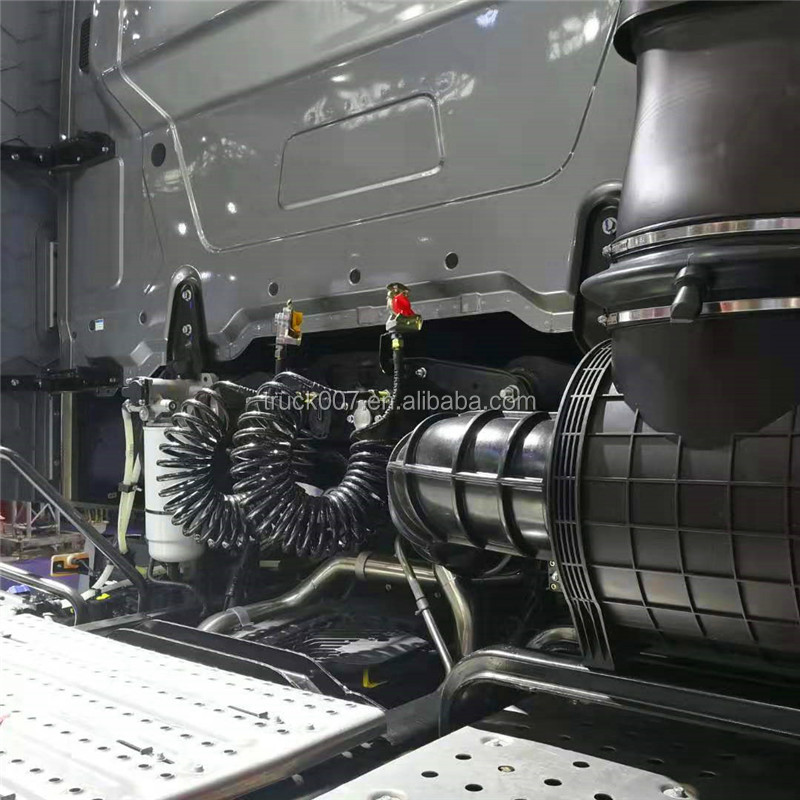

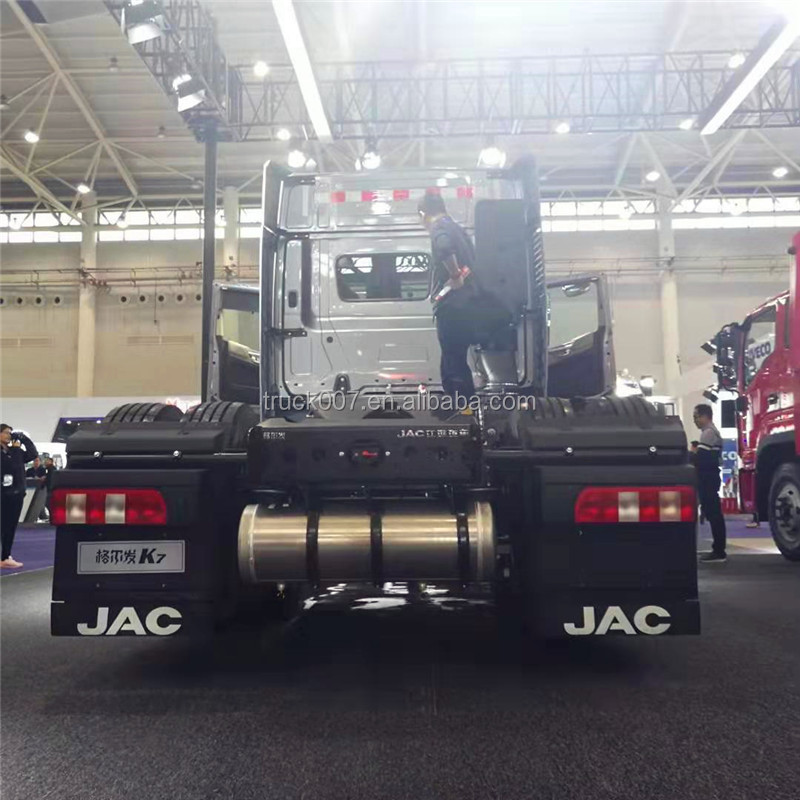

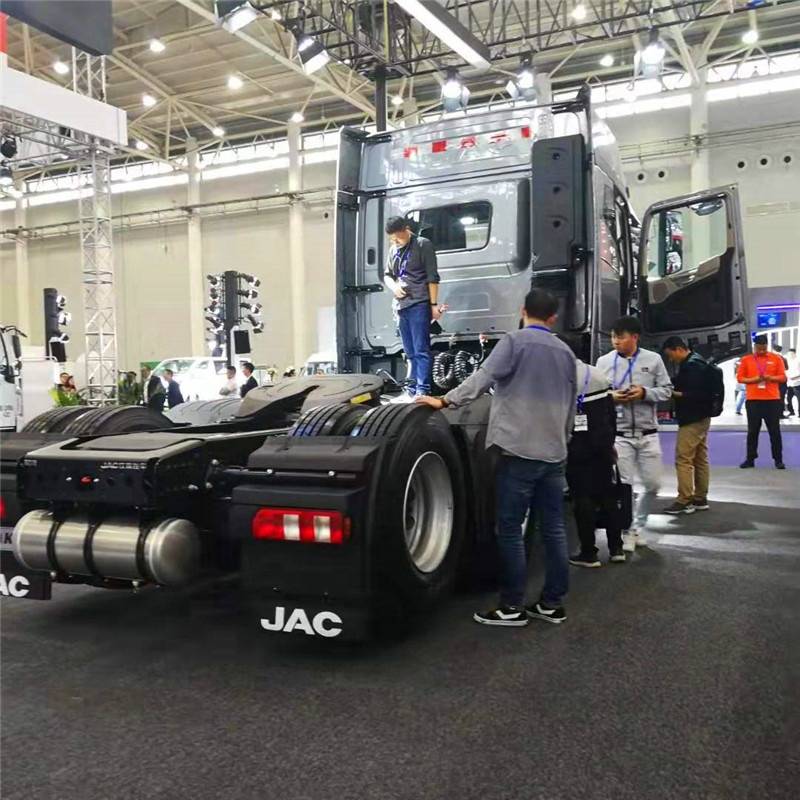

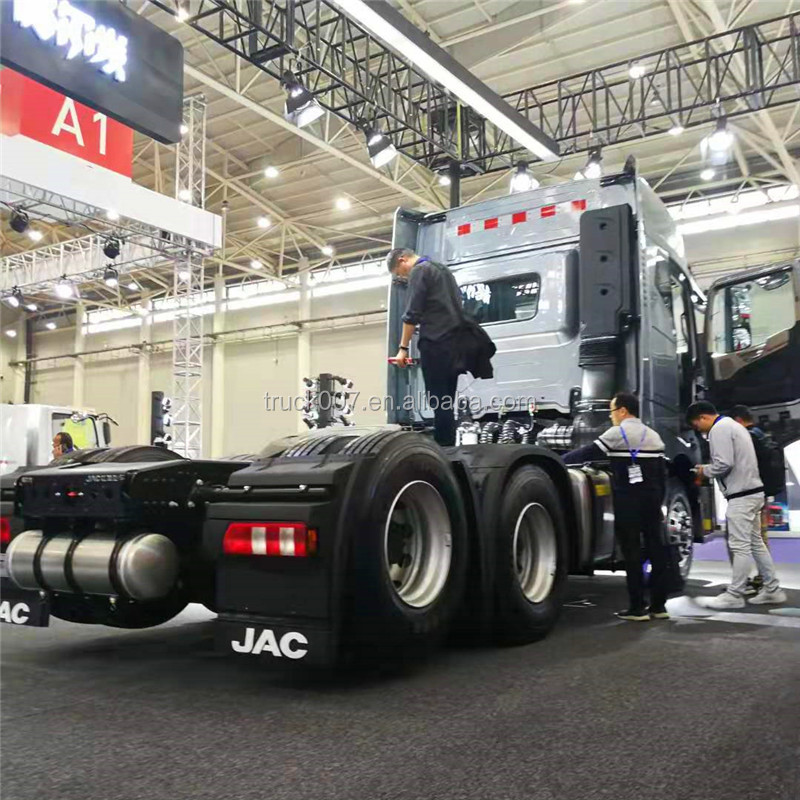

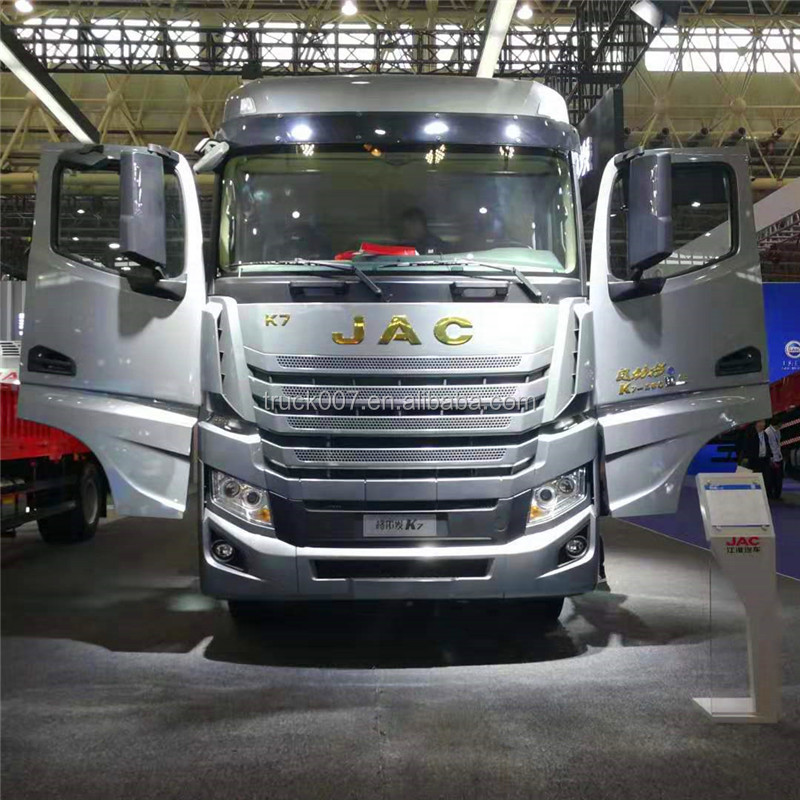

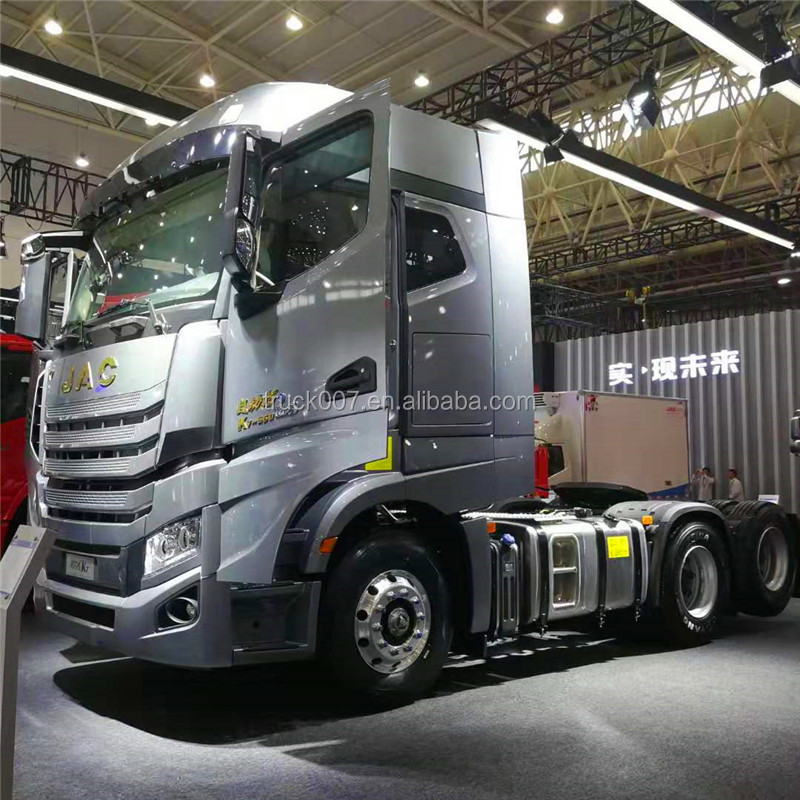

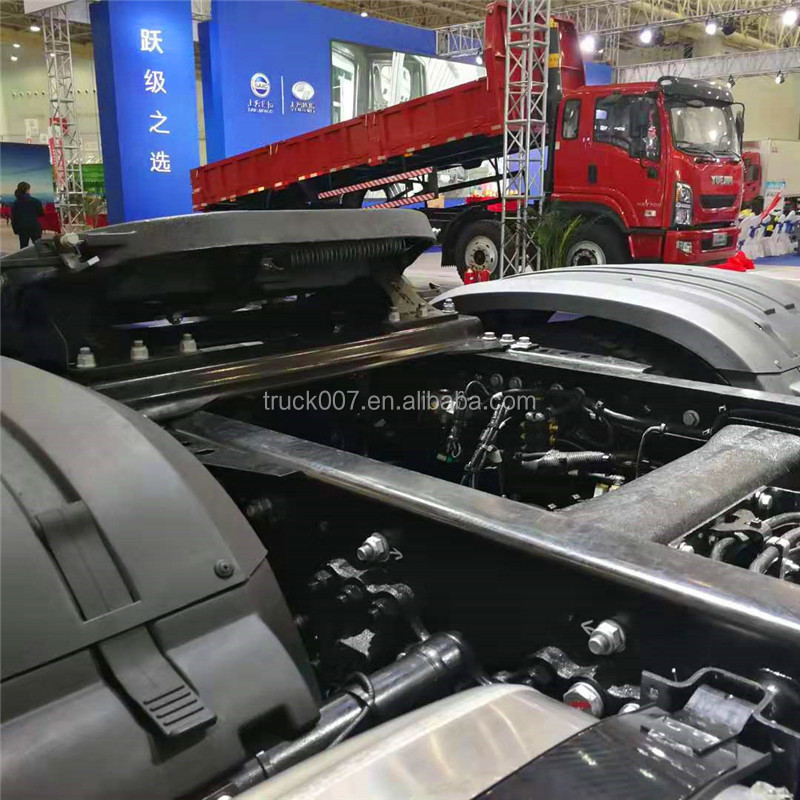

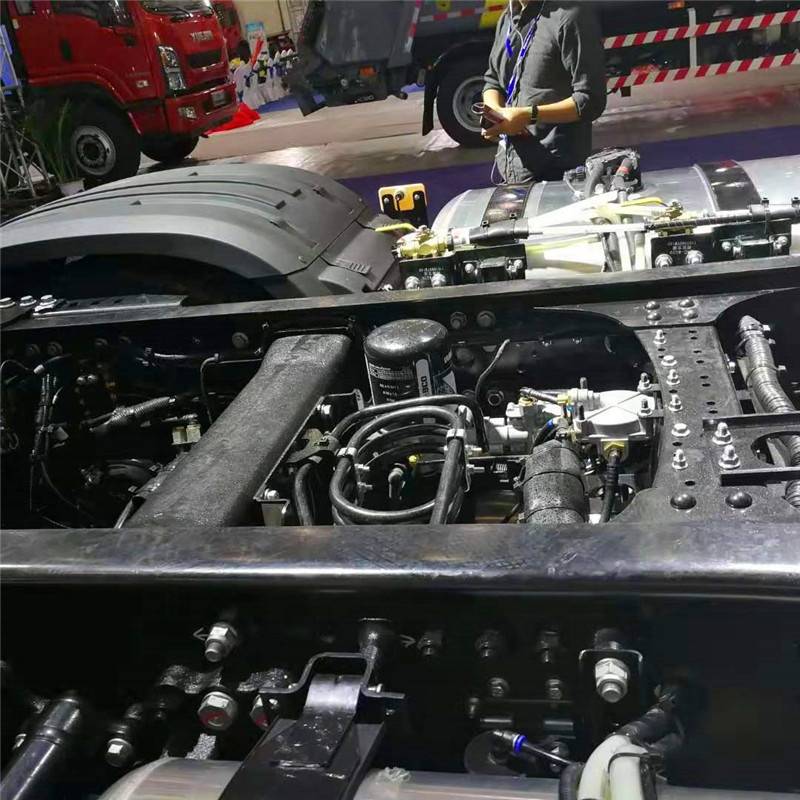

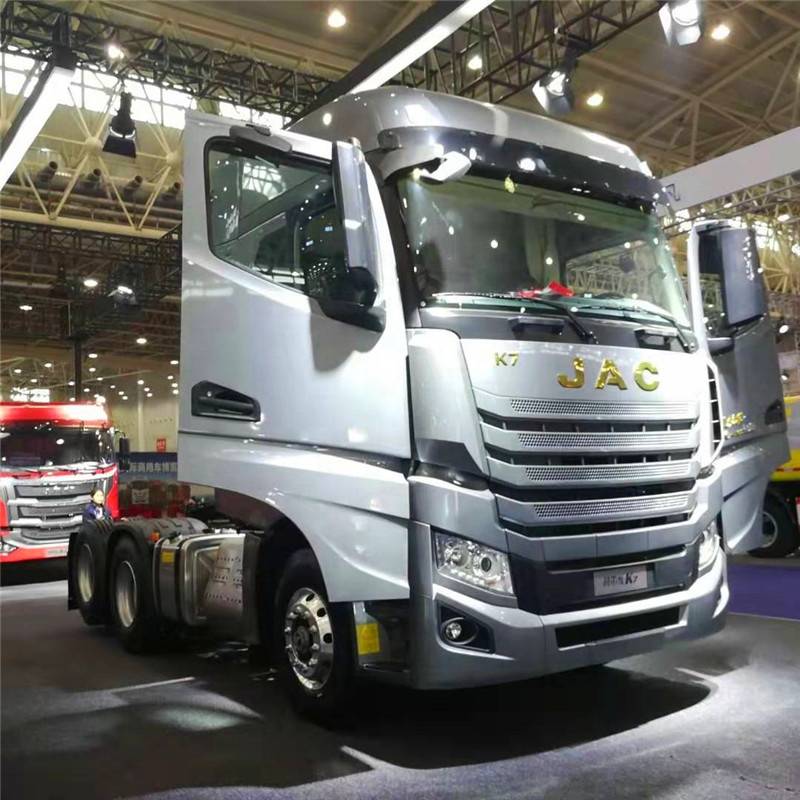

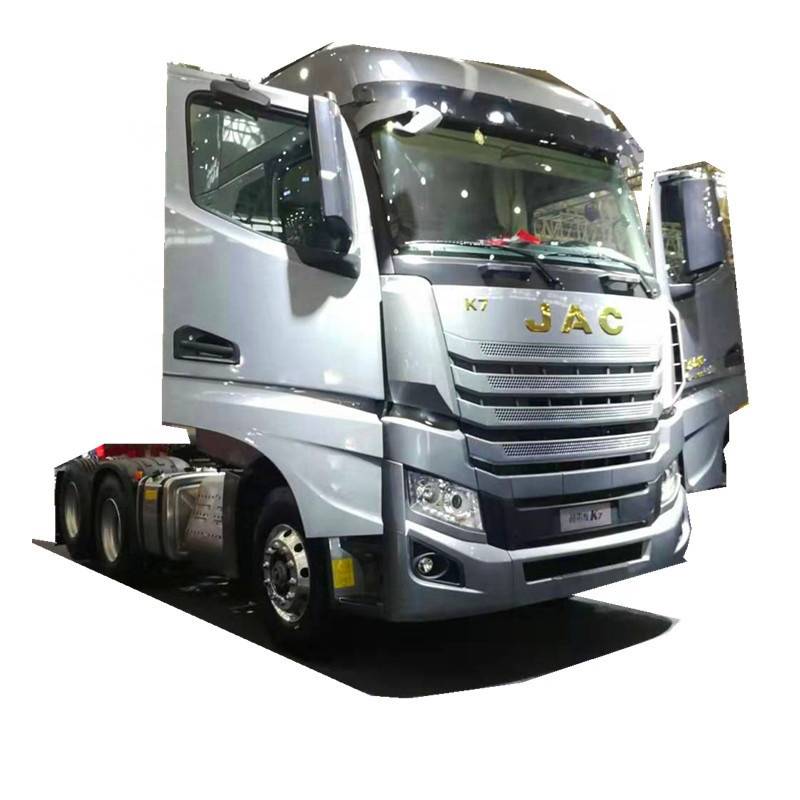

Tractor trucks photos for you reference
Packaging & Shipping
- Packaging Details
1. Packaging: nude or waxing or CONTAINER or RO-RO or Frame
2. Shipping: In the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;We can supply different and professional shipping solution for your customized product to one-stop service.
- Port
- SHANGHAI , WUHAN , LIANYUANGANG , TIANJIN
- Lead Time :
-
Quantity(Pieces) 1 – 1 >1 Est. Time(days) 35 To be negotiated
Our Services
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
