Product Description

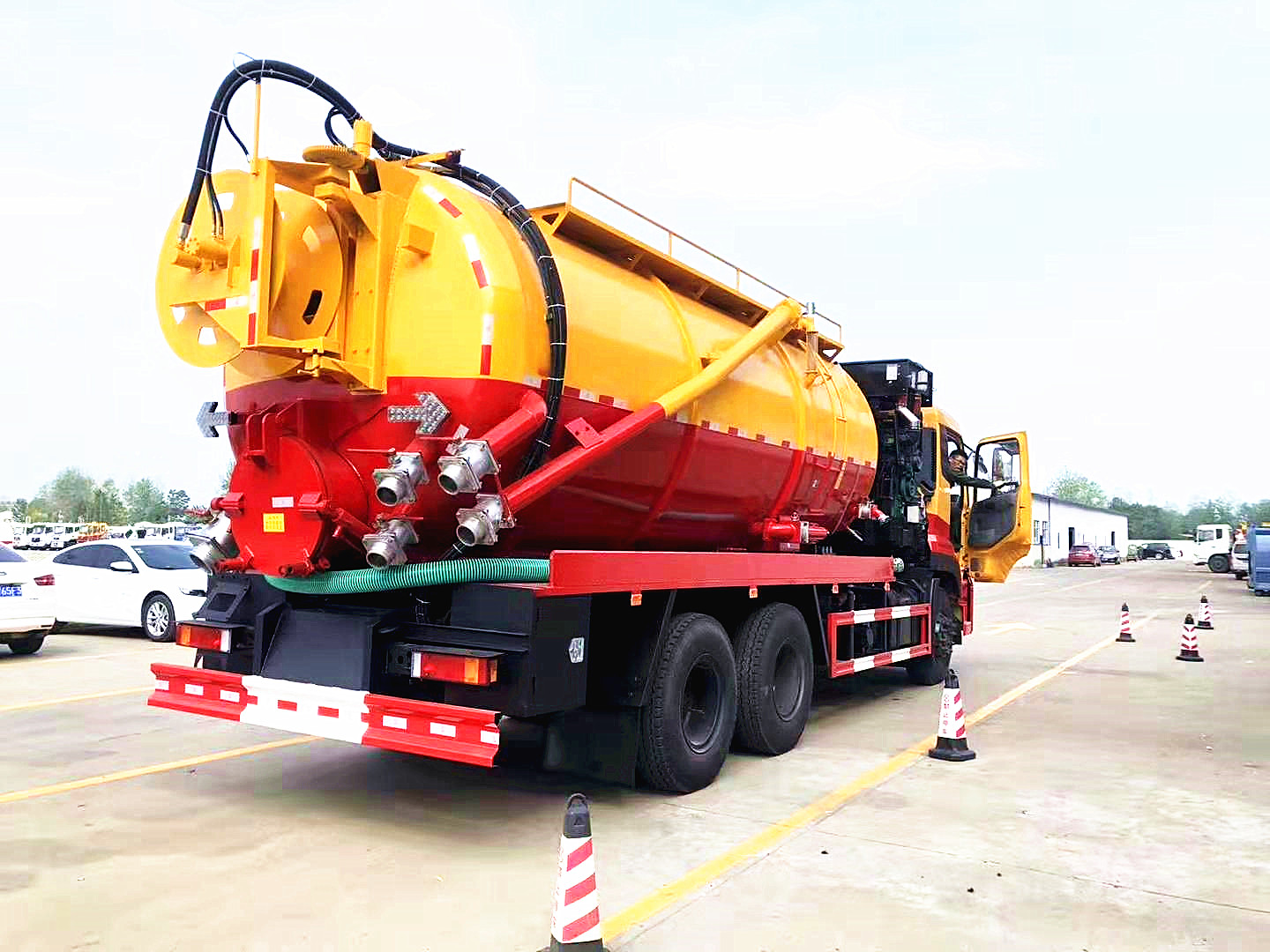

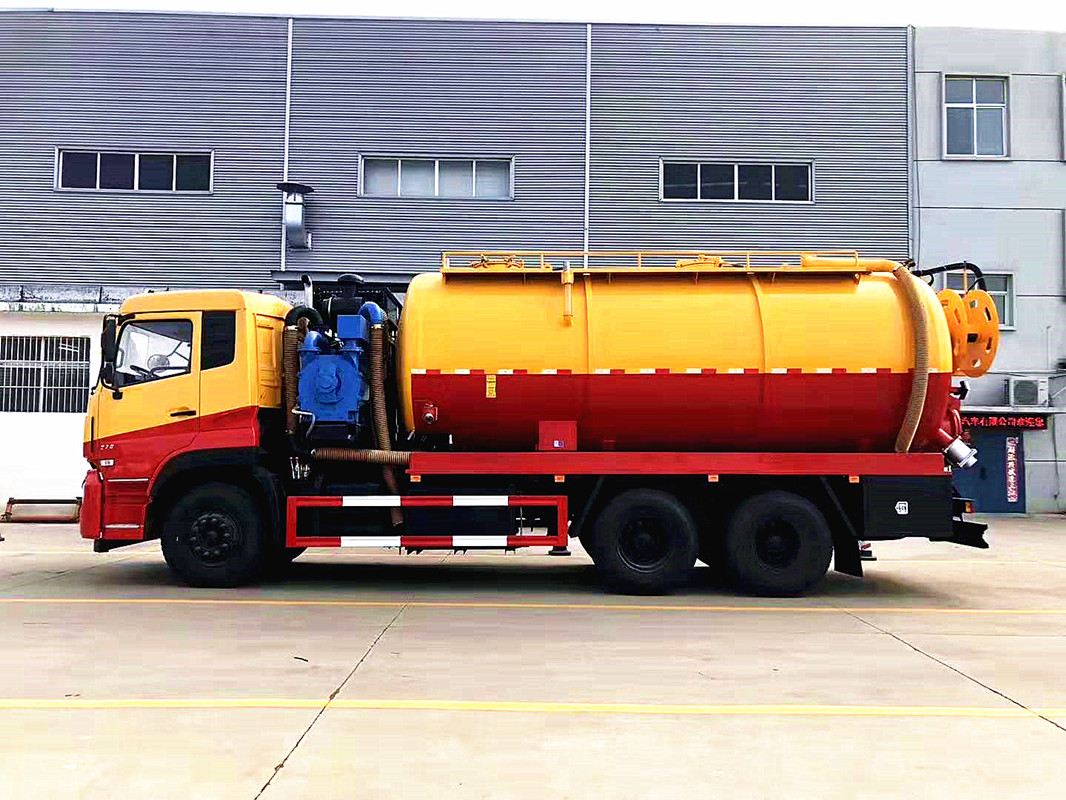

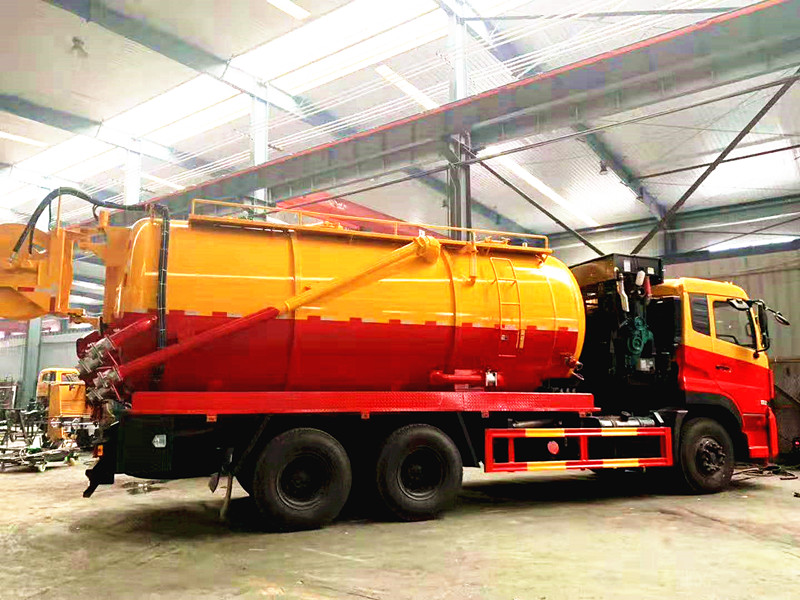

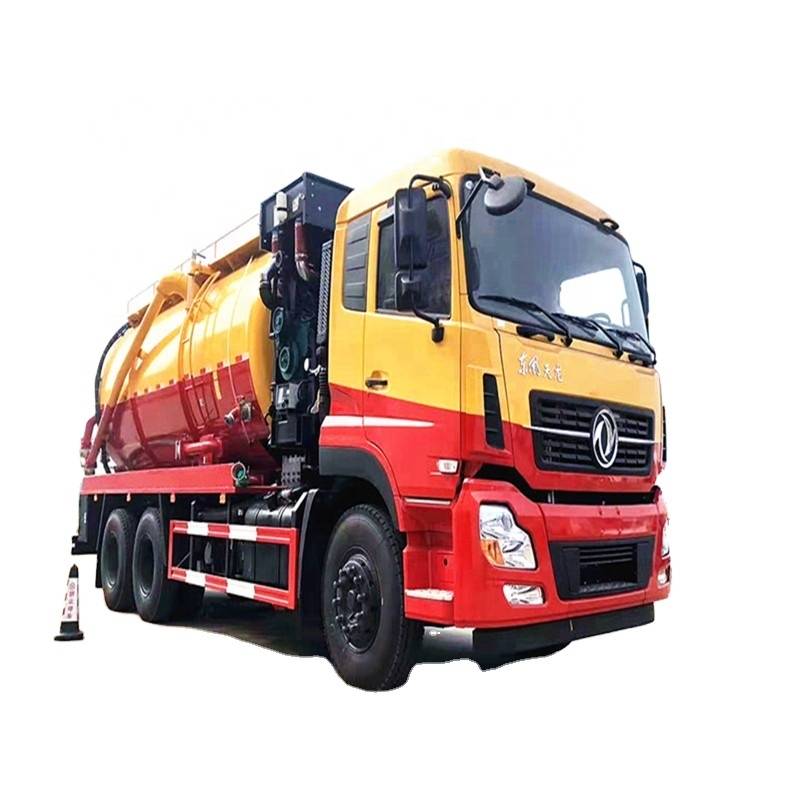

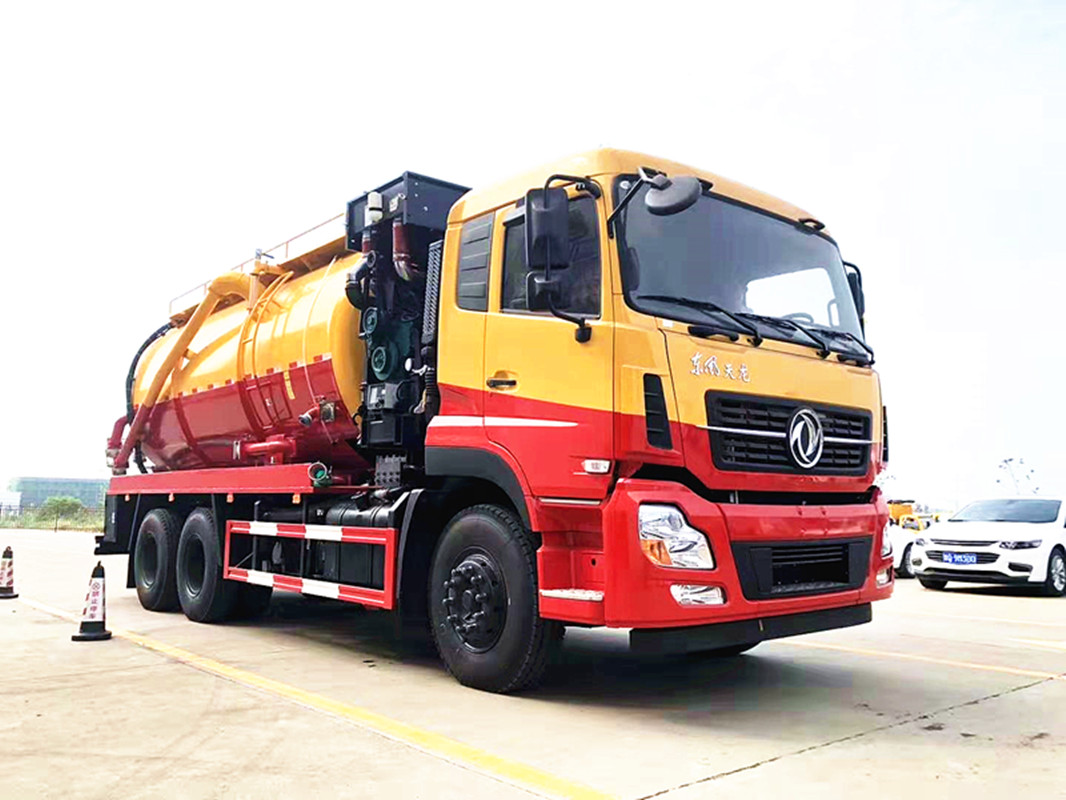

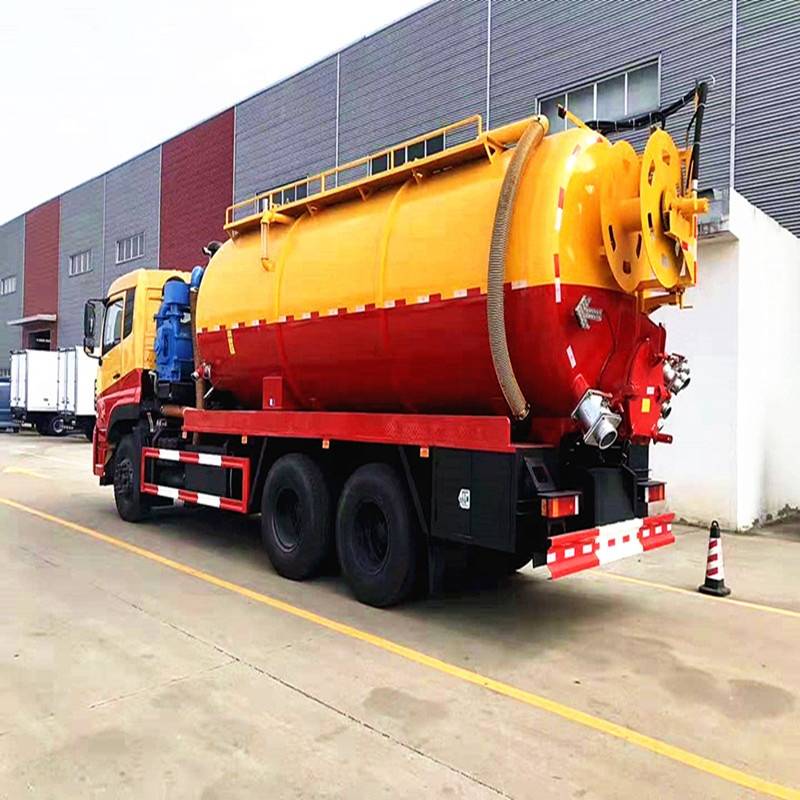

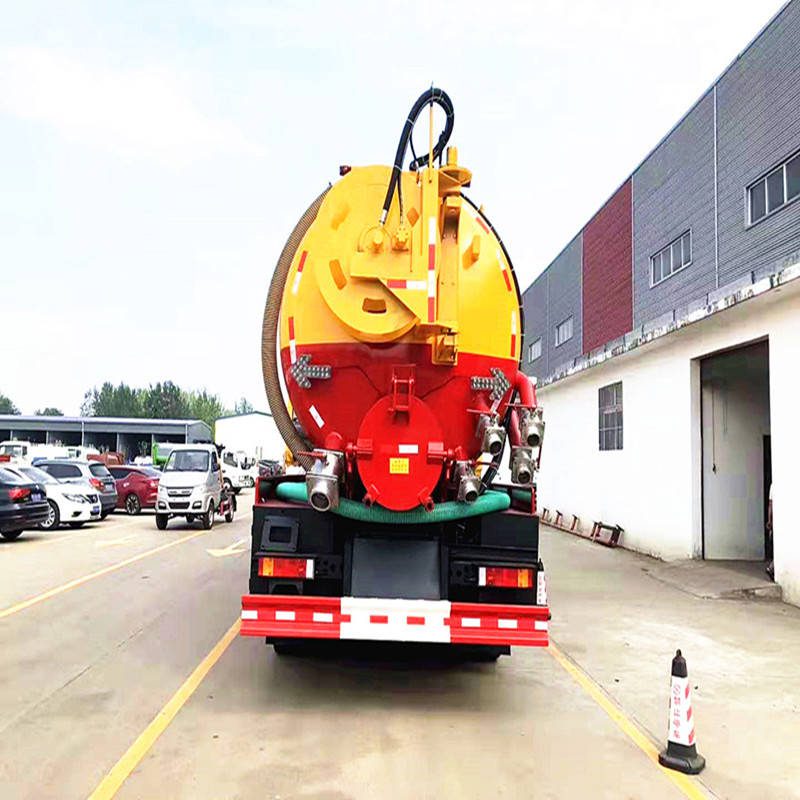

Dongfeng vacuum sewage suction truck 3 axles Faecal Sewage Cleaning and Suction Truck
|
ITEM |
UNIT |
PARAMETER |
|
|
Vehicle |
Dongfeng sewage clean and suction truck |
||
|
Overall dimensions |
mm |
9800x2500x3850 |
|
|
Front water tank |
m3 |
5 |
|
|
Rear suction tank |
10 |
||
|
GVW |
kg |
Appro×25000 |
|
|
Curb weight |
Appro×15000 |
||
|
Wheel base |
mm |
4350+1350 |
|
|
Approach/departure angle |
° |
18/15 |
|
|
Max speed |
km/h |
90 |
|
|
Axle Load |
kg |
7000/10000/10000 |
|
|
Drive system |
4×2 |
Emission standard |
Eu 3 |
|
Tire specification |
11.00R20 |
Number of axles |
3 |
|
Steering |
Power |
Transmission |
8F&2R |
|
Engine model |
Manufacturer |
Dongfeng Yuchai |
|
|
Model |
C245-30 |
||
|
Emission/kw |
8300ml/180Kw, 245hp |
||
|
Gear box |
8F&1R |
||
|
type |
Diesel, 6 cylinder , direct-line, turbocharge and water cooling |
||
|
Crane configurations |
Tianjin Tongjie 250 high pressure pump, 60 meters PVC double layer high pressure pipe 22 diameter high pressure pipe, 10 high pressure nozzles, two cement covers, top 100 intercommunication, water and dirt universal 100 ball valve, water tank 3 inch The ball valve is installed at the bottom of the tank. The water tank is sprayed with anti-rust inside the tank, the hydraulic port of the rear head 600, a 6-inch self-flow, a 4-inch feed port, a 4-inch sewage outlet, and a 6-inch side. The rear cover is equipped with a removable detachable reel sleeve, and a reel on the right rear side. The tank body is made of 8mm thick steel plates, and the back cover is provided with a 600 hydraulic port for sewage discharge and 300 sides for self-flowing. The tank is filled for less than 5 minutes the suction is greater than 9m. Suction pump SK30 for domestic, import Italy PN155D, the back cover can be opened, the tank body is self-unloading, self-priming and self-discharging. |
||
The joint dredging vehicle is also called a sewer dredging vehicle. This car is a new type of sanitation special vehicle that combines the functions of a high-pressure cleaning vehicle and a suction truck. The highlight function of the vehicle is the sewer blockage area that cannot be reached by manpower, so it is called a joint dredging vehicle. . Other functions of the car are floor washing, sewage and sewage, landscaping and so on.
The working principle is that after the suction pipeline system absorbs the accumulated water in the sewer, the vehicle winch is placed at a constant speed on the high-pressure pipeline, and the rotating force of the high-pressure flushing pipeline makes the high-pressure flushing pipeline enter the sewer blockage area that cannot be reached by the manpower, and the high-pressure punching operation is performed. Through the suction pipeline to minimize the coverage of water and dirt on the blocked area, the best breakthrough effect can be achieved, and the purpose of dredging the sewer can be achieved.

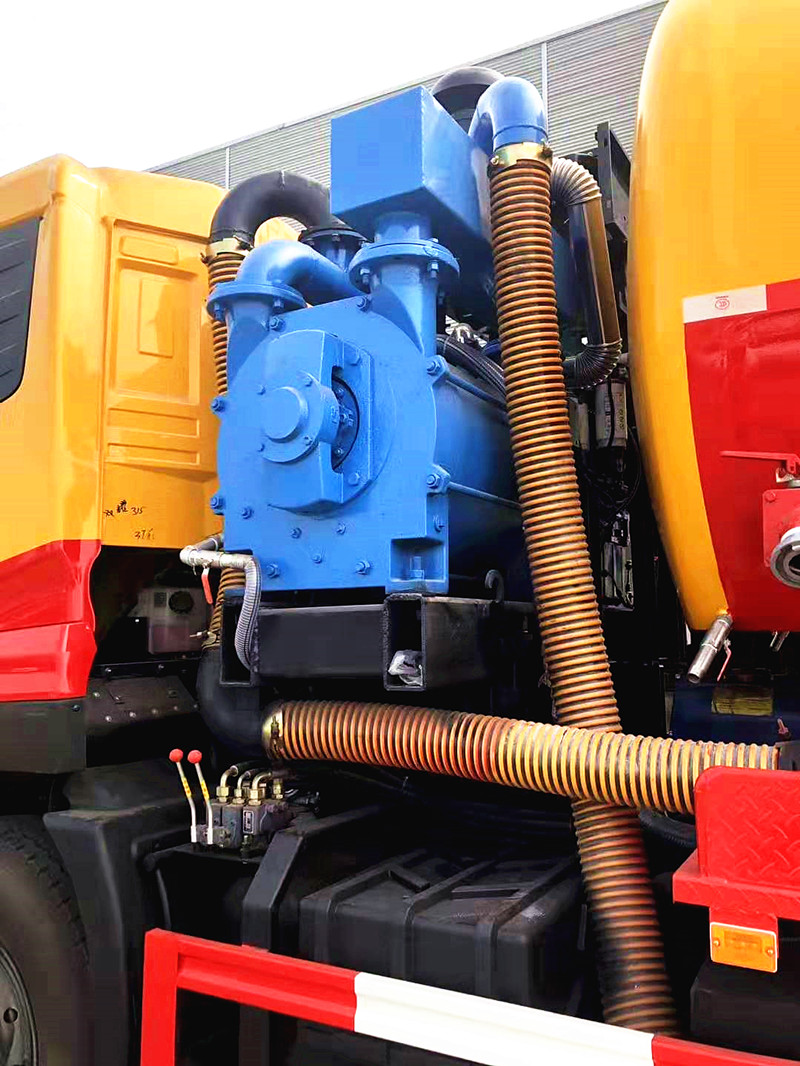

The joint dredging vehicle is composed of a second-class automobile chassis, power take-off, clean water tank, sewage suction tank, high-pressure water pump, vacuum pump, hydraulic control device, mechanical winch device, high-pressure flushing pipe, vacuum suction pipe, and sewage system.
First, high-pressure flushing function: water pressure ≥16 Mpa working length ≥60 m sprinkling amplitude ≥10 m high-level washing height ≥15 m
Second, the suction function: the depth of suction is ≥ 7 meters, the dumping angle of the sewage tank is 45 degrees;
Third, the winch: stranding force ≥ 10 KN working length ≥ 60 m
Packaging & Shipping
Our Services
Company Information

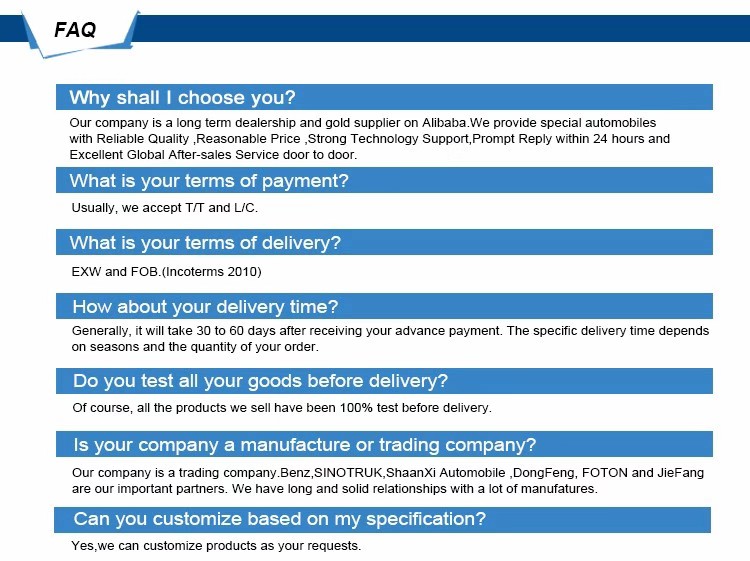

FAQ
