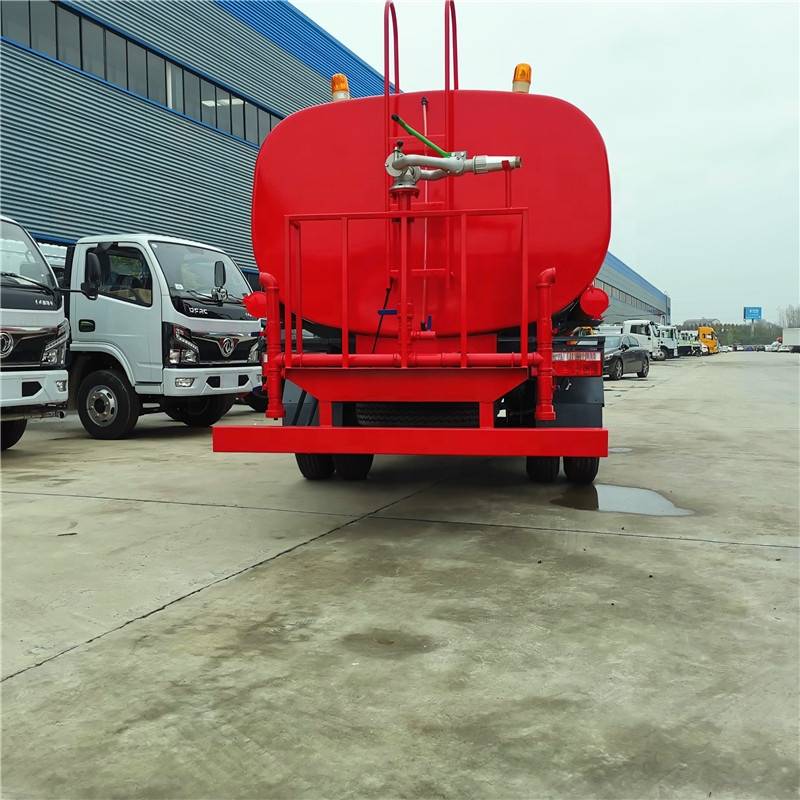

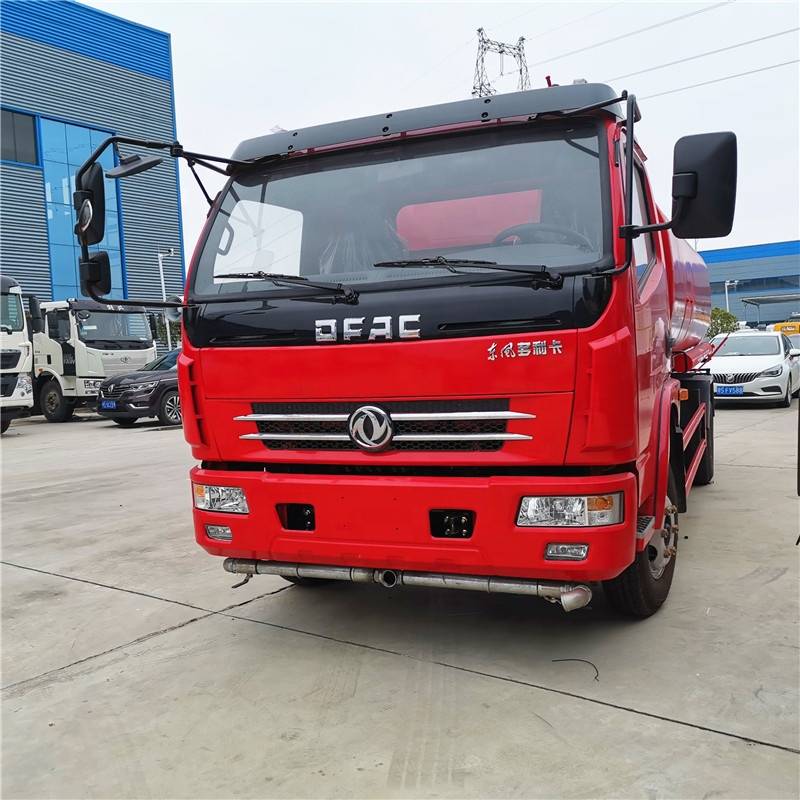

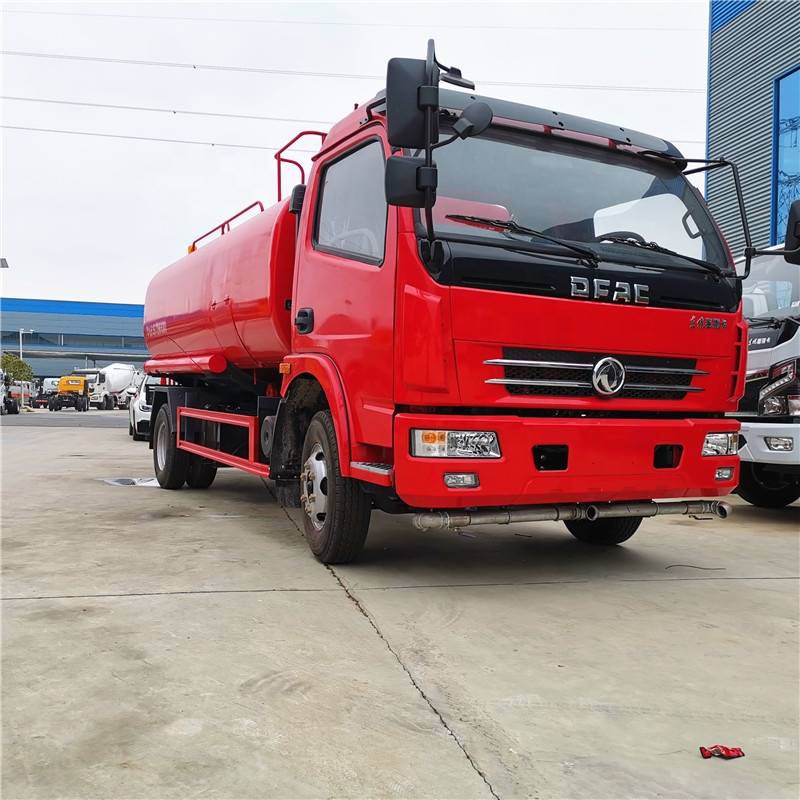

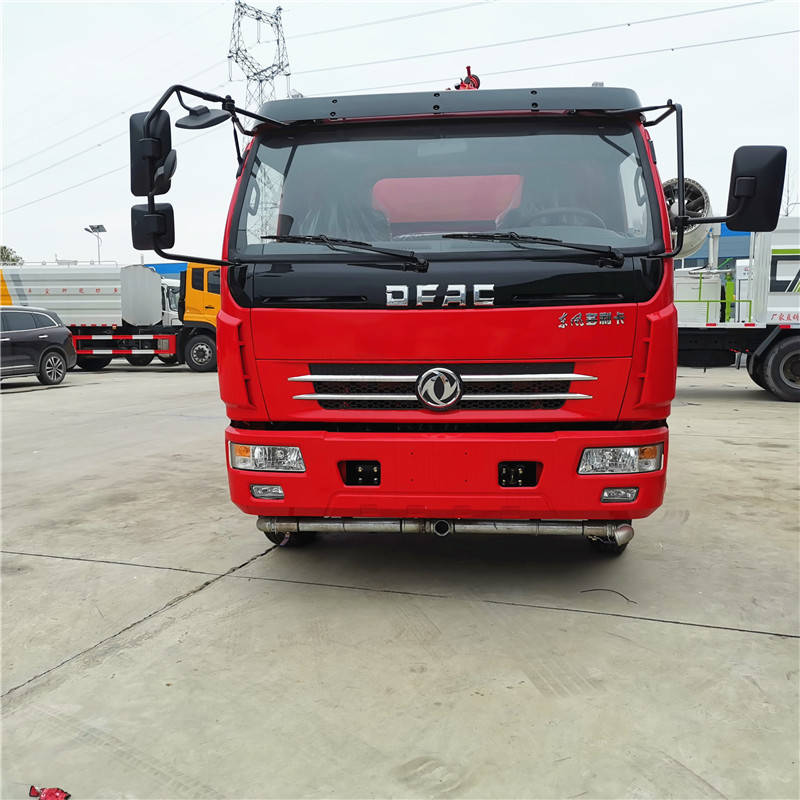

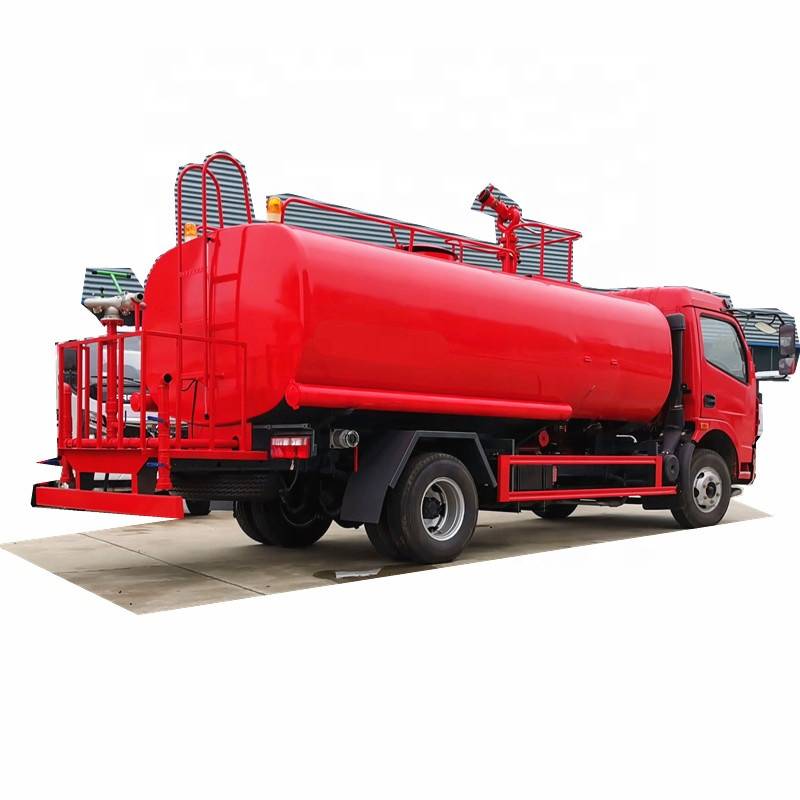

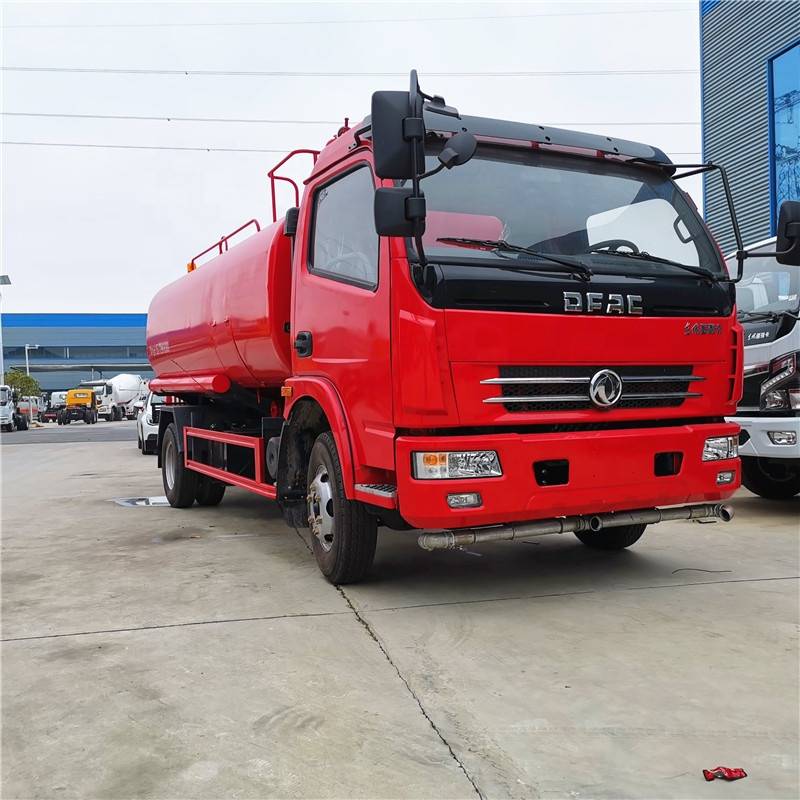

China made Dongfeng water tank fire fighting truck for sale
1.We are professional manufacturers to do the special vehicles ,such as fire truck , wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck ,mixer truck, truck with crane ,garbage truck ,dump truck, vacuum sewage suction truck, etc .
2.We are supply all brands special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck Jac , Jmc , ,Dongfeng all avaliable .
3 Drive type could be 4×2 , 4×4 , 6×2 , 6×4 , 6×6 , 8×4
4. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
5 Capacity : from 5CBM-35CBM
Water truck, water sprinkler, water wagon, water spray truck, water transport truck, street water spray truck, water tanker truck ,water tank truck, water sprinkling truck, water vehicle, street water spray truck, we can supply different capacity tank truck, water tank truck, which is also called water carts, is a kind of engineering machinery, used to transport water for human drinking, agricultural irrigation, fire suppression, as well as spray water to clean road and dust on construction sites
اسم | CLW Fire Sprinkler Water Tanker Truck | ||
Item | Specifications | Item |
Specifications |
Truck Parameter | |||
Model | YZR5143GSSC6B | Chassis Model | EQ1108KJ |
Gross Weight (kg) | 14050 | Overall dimensions (mm) | 7295×2410×2805 |
Payload Weight (kg) | 7665 | Tank Volume(cbm/t) | 8-9 |
Curb Weight (kg) | 6255 | Wheelbase (mm) | 3950 |
Engine Parameter | |||
Model | B170 33 | Brand | Dongfeng |
Power(hp/kw) | 170/ 125 | Emission Level | Euro 3 |
Specification | |||
Max speed (km/h) | 95 | Front Track (mm) | 1952 |
Cab | 2 | Rear Track (mm) | 1840 |
Leaf Spring | 10/10+8 | Front/Rear Overhang (mm) | 1270/2225 |
Number of Tyres | 6 | Approach / DepartureAngle(°) | 18/9 |
Tyre Specification | 9.00R20 16PR | Axle Load (kg) | 4850/9200
|
Number of axles | 2 |
|
|
Special Function | |||
Tank Capacity (L/T) | 8000-9000 | ||
Fire Monitor | Model:PS20 rate of flow:20L/S/1MPa,water range:≥45m | ||
Fire Pump(Normal Pressure)middle-lower pressure is optional | 1. Normal pressure model::CB10/20,rate of flow200L/s, pressure:1.0MPa | ||
2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO | |||
Packaging & Shipping
- Packaging Details
1. Packaging: nude or waxing or CONTAINER or RO-RO or Frame
2. Shipping: In the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;We can supply different and professional shipping solution for your customized product to one-stop service.
- Port
- SHANGHAI , WUHAN , LIANYUANGANG , TIANJIN
- Lead Time :
-
Quantity(Pieces) 1 – 1 >1 Est. Time(days) 35 To be negotiated
Our Services
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
Company Information
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company.Chengli registered trademark: "Cheng Liwei" brand, the national product code: "CLW", is the only Chinese first won the "China well-known trademark" special purpose vehicle manufacturing enterprises.
CHENGLI SPECIAL PURPOSE VEHICLE CO., LTD. Technical force is rich, detection means complete, with large equipment 750 units (sets) and 16 final assembly production line.Product quality is stable, flexible mode of operation, the company is now fully passed ISO9001-2008 international quality system certification, product all through 3C international compulsory product certification, and export products through the various authentication."Cheng Liwei" national announcements list on the product has more than 680 varieties.
