Product Description

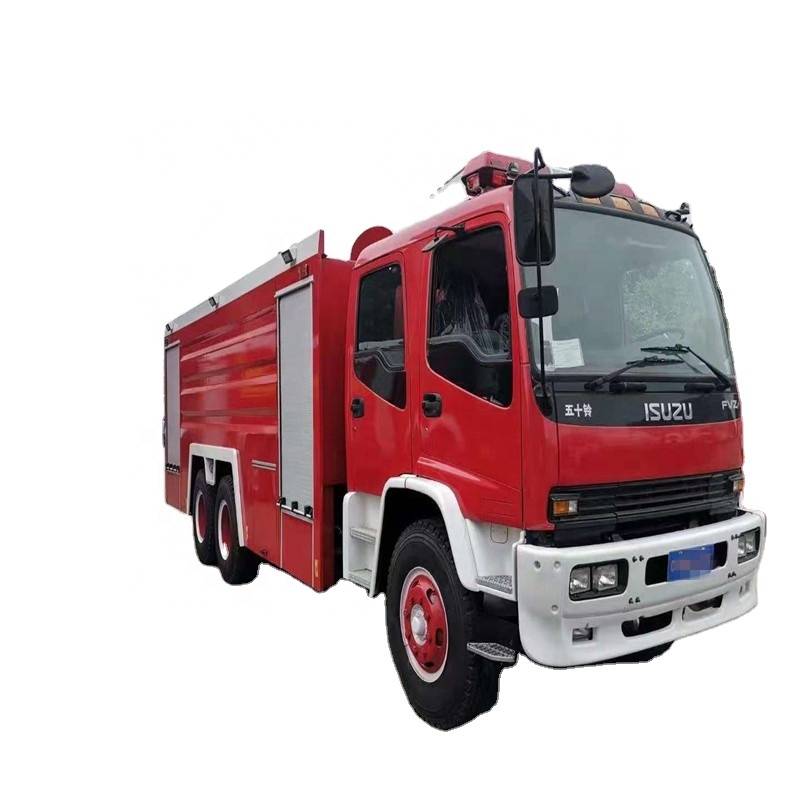

16cbm Special Truck Water Foam Tank Rescue Vehicle Fire Engine Fire Extinguisher Fire Fighting Pump Truck
Water Foam Fire Engine

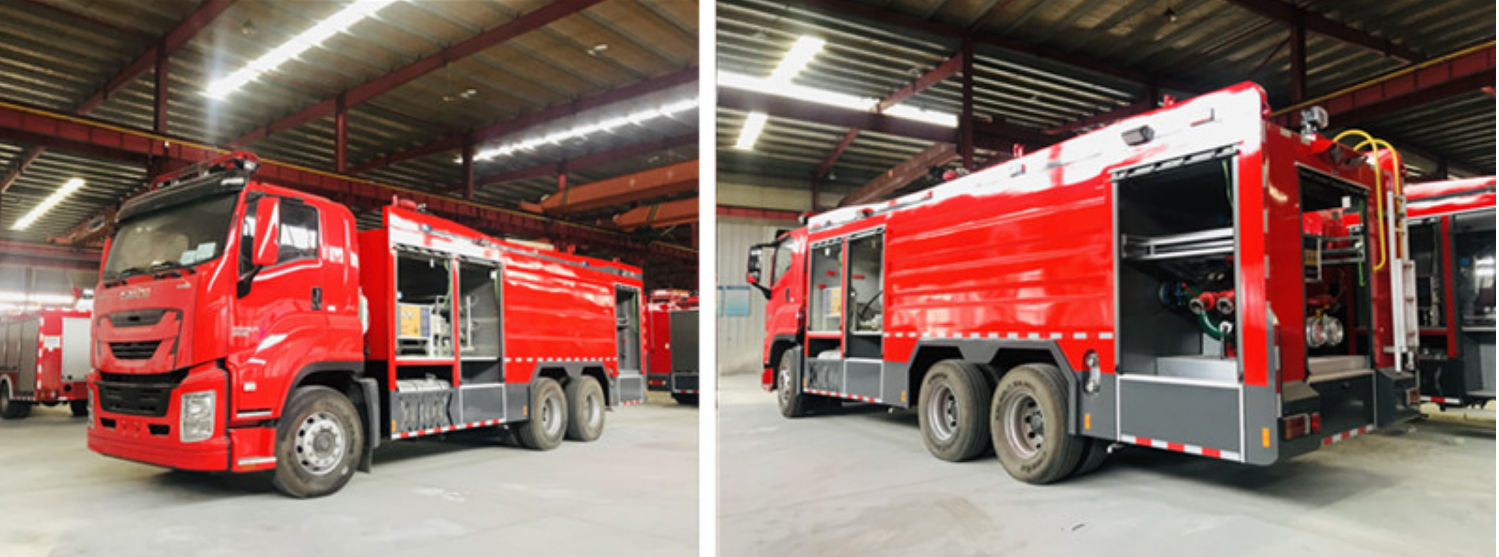

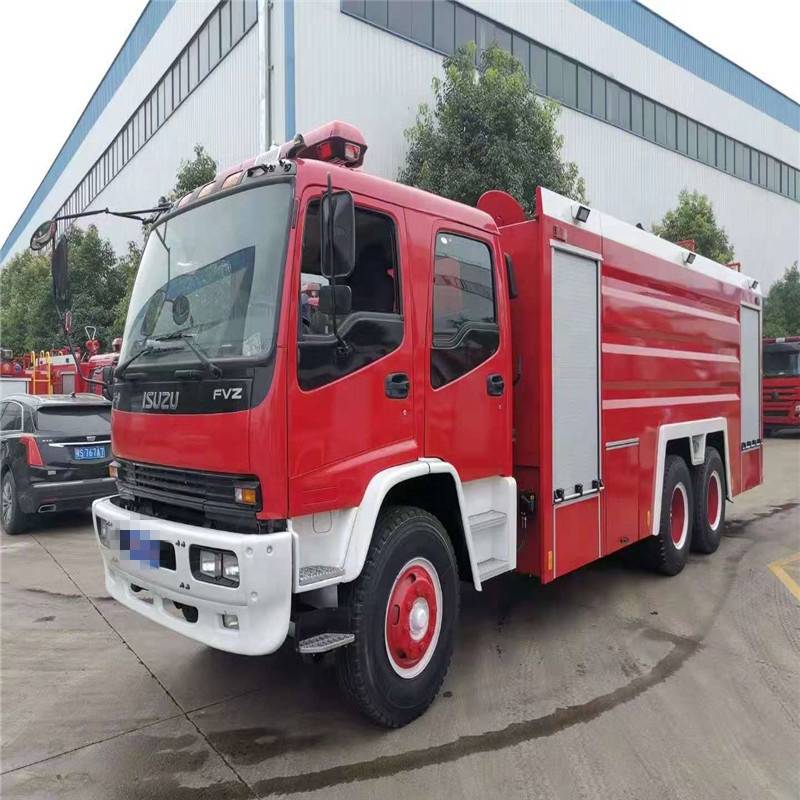

GIGA 10 Wheels 16 m3 Fire Fight Rescue Truck

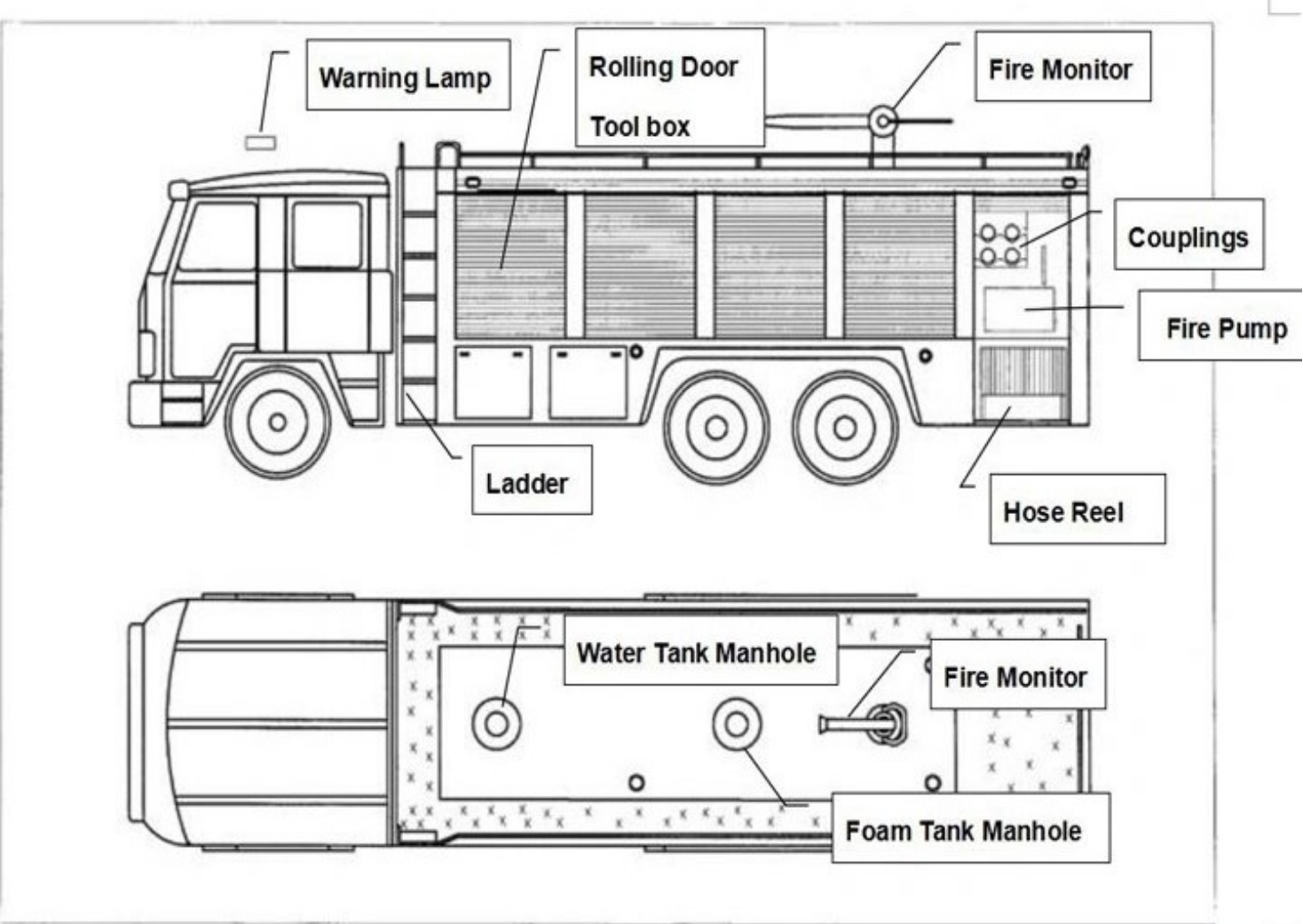

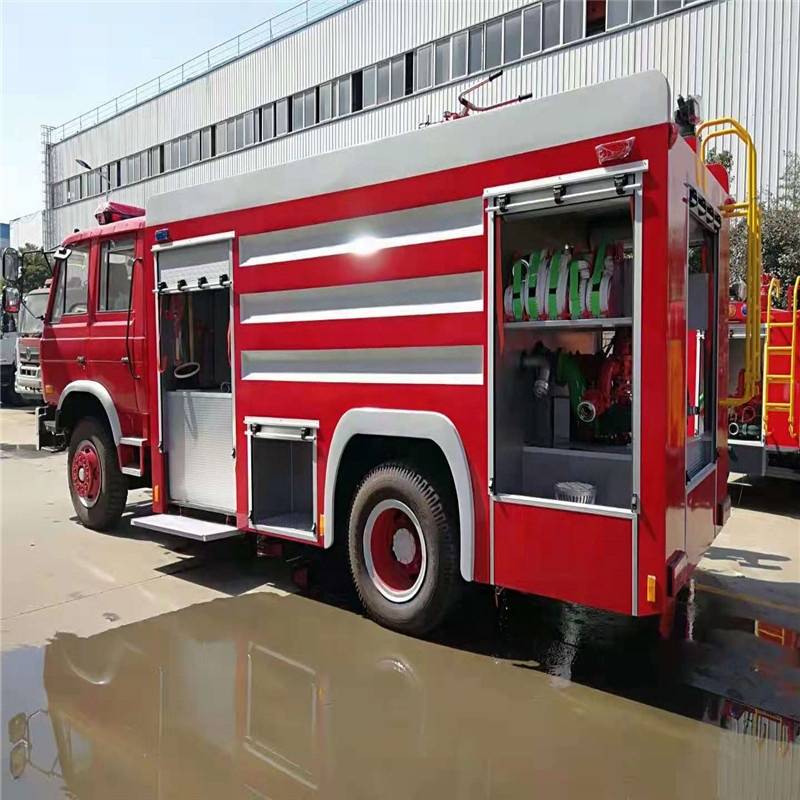

Fire fighting truck is composed of the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components.
It is widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments. It can quickly approach the fire and start fire fighting, extinguish various kinds of fires; it is an ideal fire-fighting equipment.
|
Main Parameter |
Chassis brand |
ISUZU QL5330 | |
|
Driving type |
6X4 | ||
|
Cab |
GIGA cab, A/C, four doors,3 seats, left hand drive | ||
|
Overall dimension |
9760X2550X3650 mm | ||
|
Curb weight |
14450 kg | ||
|
Wheel base |
4565+1370 mm | ||
|
Axle |
6000/10500/10500 kg | ||
|
Tire |
10pcs, 315/80R22.5 18PR | ||
|
Engine |
Model |
6WG1-TCG51 | |
|
Power |
460hp | ||
|
Displacement |
15681 ml | ||
|
Fuel Type |
Diesel | ||
|
Emission standard |
Europe V | ||
|
Gear box |
Type |
Manual 12-speed | |
|
Brand |
ISUZU | ||
|
Special function | |||
|
Special |
Structure |
Welding, there is clapboard inner. | |
|
Material |
Water Tank |
High quality carbon steel plate, anti-rust treatment | |
|
Foam tank |
Carbon steel, optional stainless steel plate | ||
|
Capacity |
Water Tank |
14000L | |
|
Foam tank |
2000L | ||
|
Fire Pump |
Type |
Fire pump | |
|
Model |
CB10/60 | ||
|
Flux |
60L/S @1.0Mpa | ||
|
Max range |
65 meters | ||
|
Fire Monitor |
Type |
For water and foam | |
|
Model |
PL48 | ||
|
Flux |
48L/S | ||
|
Pressure |
1.0Mpa | ||
|
PTO |
Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
|
Carriage |
Carriage is made of high quality steel and Aluminum embossed sheet | ||
|

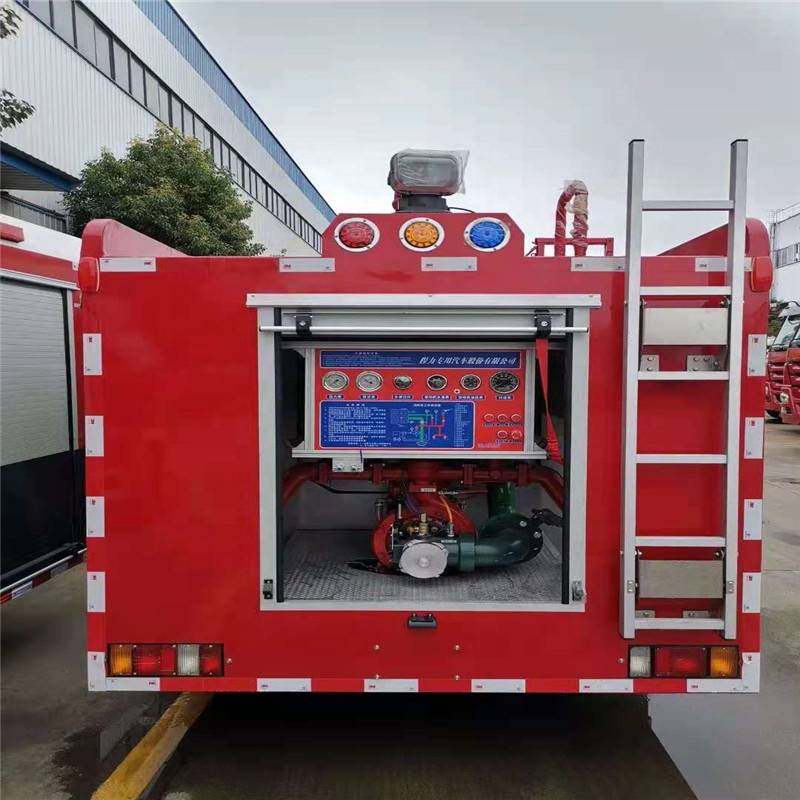

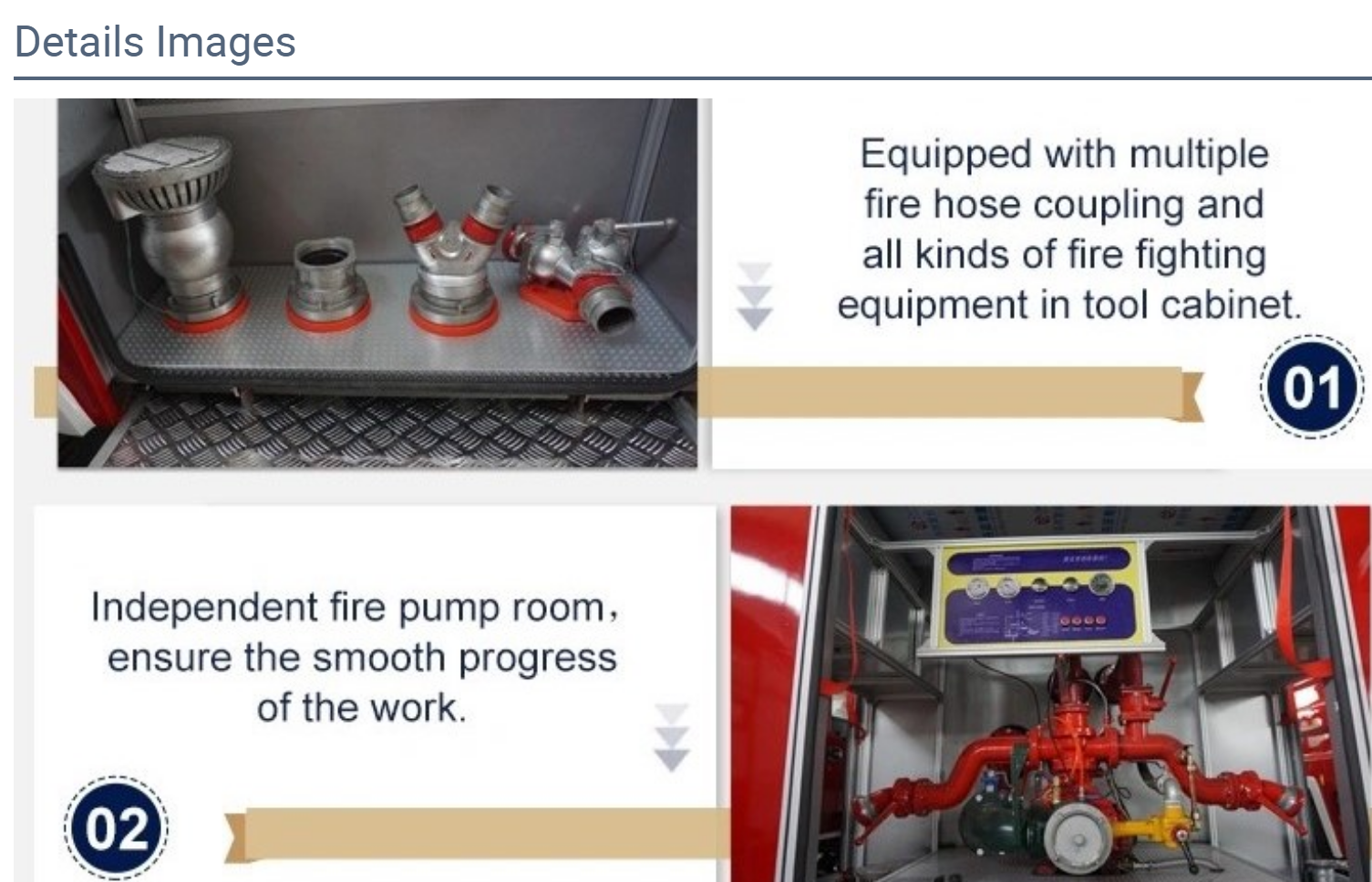

Pump room |
on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and | ||
|
Equipment box |
Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down | ||
|

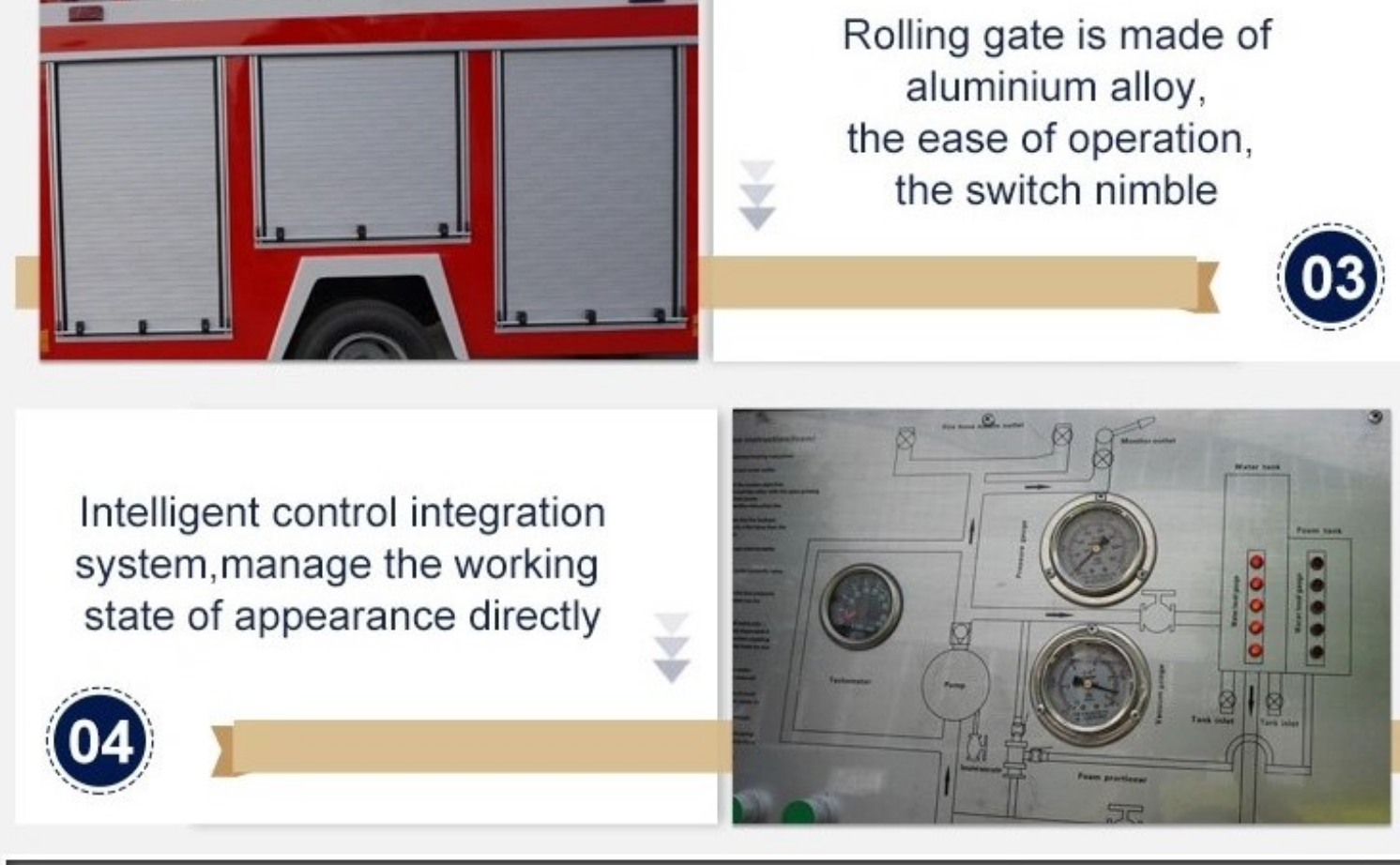

Rolling shutter door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with | ||
Packaging & Shipping
Packaging Details Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc
- Port any port of
China
ChinaOur Services

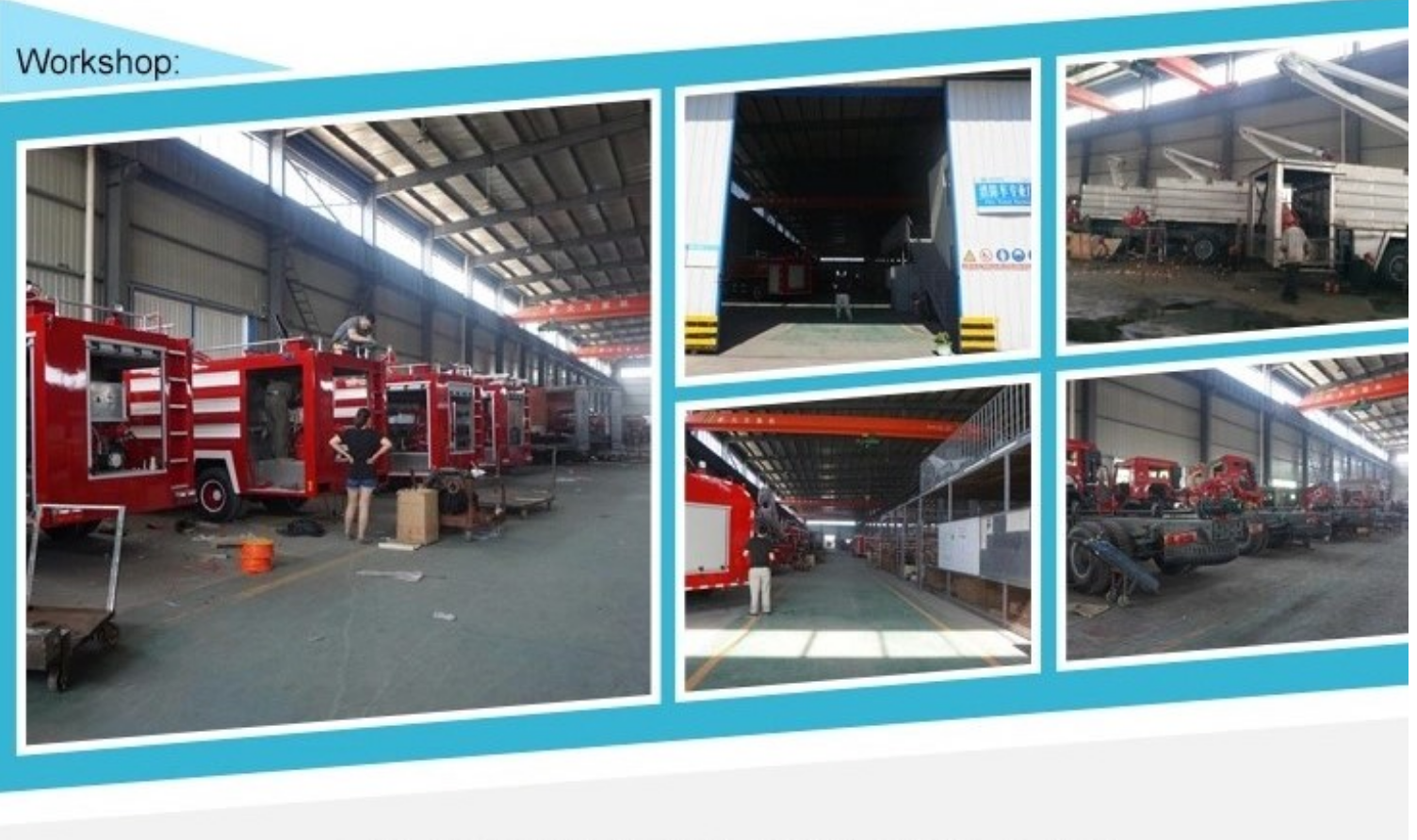

Company Information
Cheng Li Special Automobile (Manufactory) Corporation Limited, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW and SNJ. Our company has independent export right and has amount of clients in overseas.
Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 11 years' experience.
Q2: What is the lead time?
A: Normally it will take 10-25 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
